21.5'' 1920x1080 industrial display LCD screen G215HVN01.1
A grade, new, original, 12months warranty
Brand Name: AUO
Display mode: AMVA3,normally black,transmissive
Luminance(nits): 250
Contrast(%): 5000
Backlight: LED
Viewing Angle: 89/89/89/89
Interface: LVDS 8 bit,dual channel
Outline Dimension: 495.6*292.2*11.68(mm)
Surface: Anti-glare,Harding coating(3H)
Introduction
General Description:

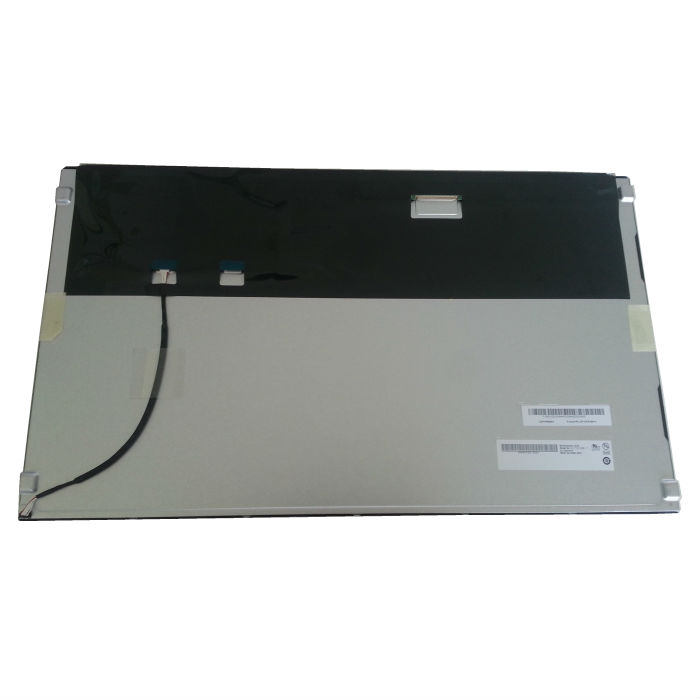

G215HVN01.1 is a 21.5'' wide Color TFT LCD module. It composed of a TFT-LCD panel, a driver circuit and a LED backlight system. The LCD display supports Full HD-1920x1080 screen format and 16.7M colors(RGB 8-bits data).All input signals are dual channel LVDS interface compatible.LED driver board is included.
Packaging Form:
G215HVN01.1 is a 21.5'' wide Color TFT LCD module. It composed of a TFT-LCD panel, a driver circuit and a LED backlight system. The LCD display supports Full HD-1920x1080 screen format and 16.7M colors(RGB 8-bits data).All input signals are dual channel LVDS interface compatible.LED driver board is included.
G215HVN01.1 is designed for industrial display applications.
Packaging Form:
Amount per Box:12pcs
Box size: 570 x 275 x 395(mm)(L x W x H)
Box gross weight:24.5kgs
Payment Terms: 100% in Advance
Shipping Methods:
Shipping Methods:
