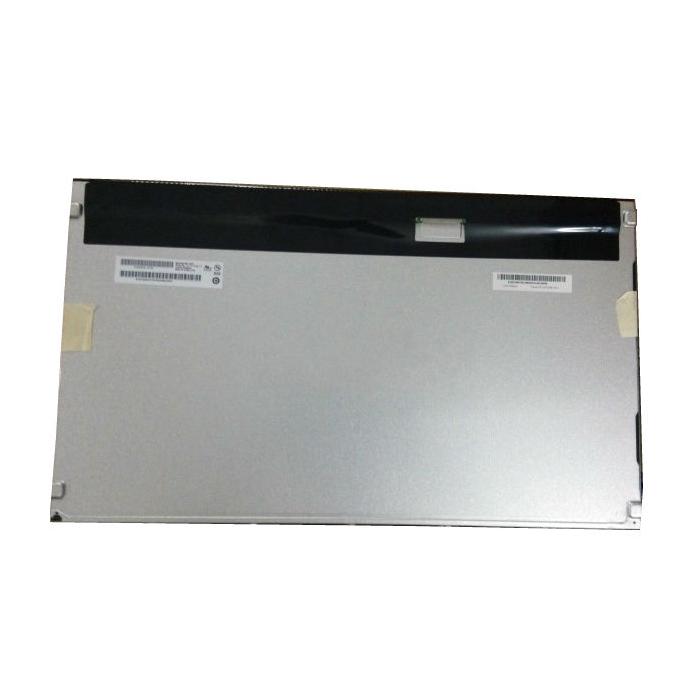

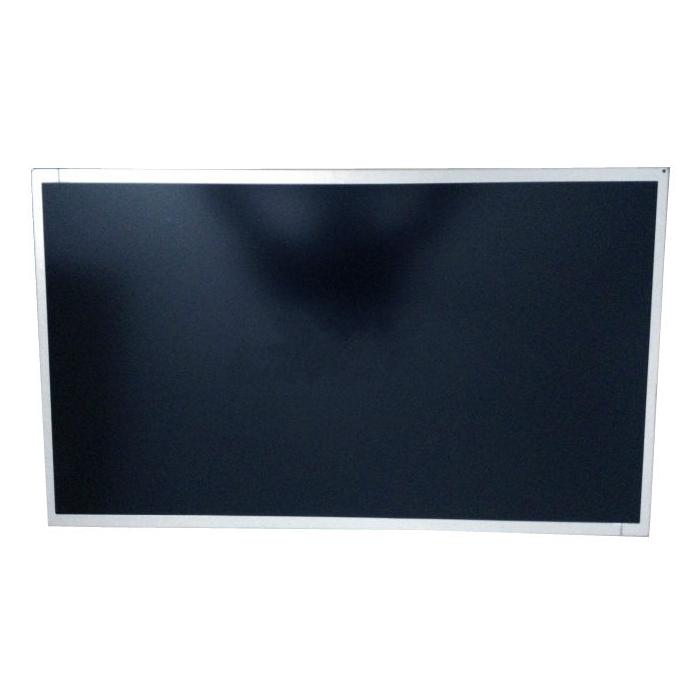

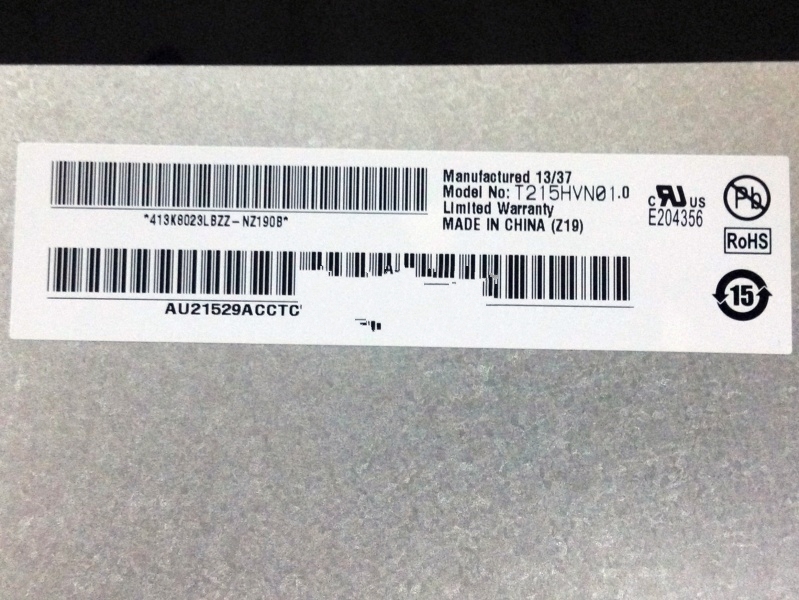

21.5'' 1920x1080 FHD TV LCD screen T215HVN01.0
A grade, new, original, 12months warranty
Angle: 89/89/89/89
Interface: 30pin LVDS
Module Size: 495.6 (W) * 292.2 (H) *10.6 (D) (mm)
Active Area: 476.64 (H) x 268.11 (V) (mm)
Surface: Anti-Glare, 3H
Display Mode: VA Mode, Normally Black
Luminance: 250 cd/m2
PCB control board: optional
Touch Screen: USB capacitive touch screen optional
Introduction
T215HVN01.0 is a 21.5 inch-FHD color a-Si TFT-LCD Module. The display supports FHD - 1920(H) x 1080(V) screen format and 16.7M colors (RGB 8-bit data). Light source of this TFT-LCD module is W-LED. All input signals are 2-channel LVDS interface and this module doesn’t contain a driver for backlight.
Packaging Form:
Amount per Box:11pcs
Box Size: 406*281*651 mm(L*W*H)
Box Gross Weight: 22.1kgs
