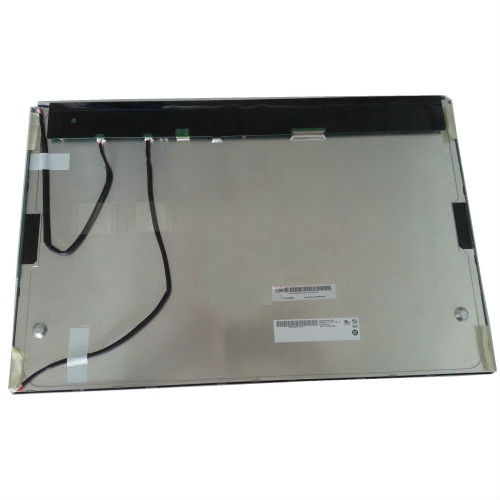

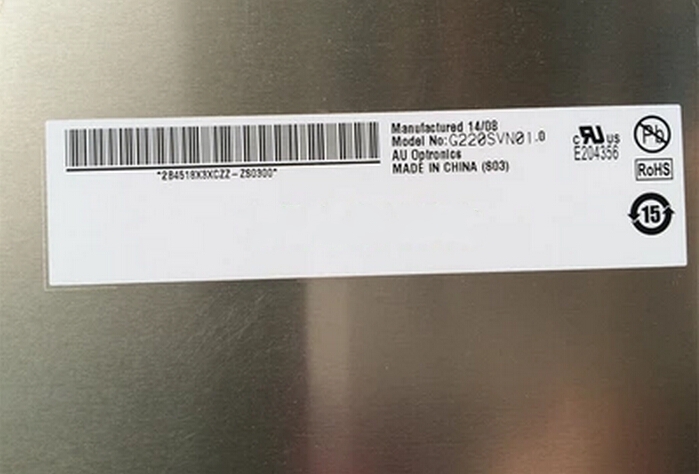

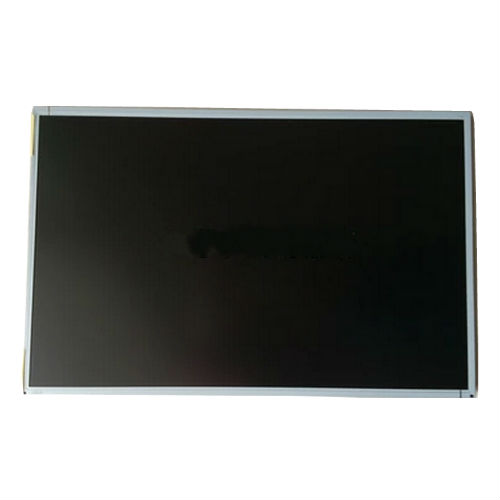

22'' 1680x1050 P-MVA display LCD screen G220SVN01.0
A grade, new, original, 12months warranty
Display mode: P-MVA,normally black,transmissive
Luminance(nits): 250
Contrast(%): 2000
Backlight: LED
Viewing Angle: 89/89/89/89
Interface: LVDS 8 bit
Outline Dimension: 493.7*320.1*15.75(mm)
Surface: Anti-glare,Harding coating(3H)
MOQ:1PC
Introduction
General Description:
G220SVN01.0 is a 22'' wide Color TFT LCD module. It composed of a TFT-LCD panel, a driver circuit and a backlight system. All input signals are 2-channel LVDS interface compatible.LED driver of backlight is included.
G220SVN01.0 is a 22'' wide Color TFT LCD module. It composed of a TFT-LCD panel, a driver circuit and a backlight system. All input signals are 2-channel LVDS interface compatible.LED driver of backlight is included.
G220SVN01.0 is designed for industrial display applications.
Packaging Form:
Amount per Box: 8pcs
Box Size: 562*275*426 mm(L*W*H)
Box Gross Weight: 26kgs
