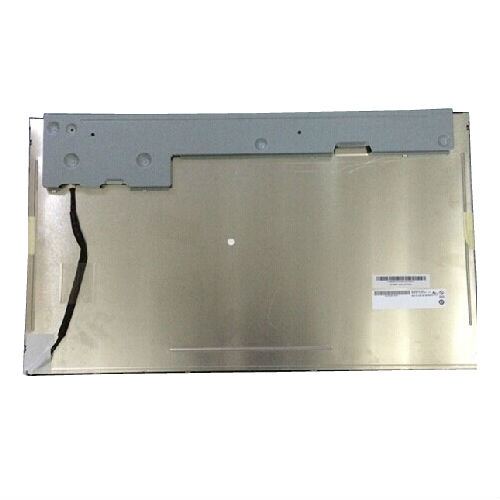

24'' 1920x1080 industrial display LCD screen G240HW01 V0
A grade, new, original, 12months warranty
Brand Name: AUO
Display mode: AMVA3,normally black,transmissive
Luminance(nits): 300
Contrast(%): 5000
Backlight: LED
Viewing Angle: 89/89/89/89
Interface: LVDS 8 bit
Outline Dimension: 556.0*323.2*17.0(mm)
Surface: Anti-glare,Harding coating(3H)
Introduction
General Description:
G240HW01 V0 is a 24'' wide Color TFT LCD module. It composed of a TFT-LCD panel, a driver circuit and a backlight system. All input signals are 2-channel LVDS interface compatible.LED driver of backlight is included.
Packaging Form:
G240HW01 V0 is a 24'' wide Color TFT LCD module. It composed of a TFT-LCD panel, a driver circuit and a backlight system. All input signals are 2-channel LVDS interface compatible.LED driver of backlight is included.
G240HW01 V0 is designed for industrial display applications.
Packaging Form:
Amount per Box:8pcs
Box Size: 412*281*650 mm(L*W*H)
Box Gross Weight: 28.4kgs
Payment Terms: 100% in Advance
