3.5'' 320x240 TFT LCD display LQ035NC111 for DSC

A grade new original,12months warranty

Brand Name: CMO

Luminance(nits): 300

Contrast(%): 400

Display Mode: TN,normally white,transmissive

Viewing Angle: 50/55/60/60

Interface: 54pin FPC,parallel 24bit RGB(serial)

Operation Temperature: -20~70℃

Outline Dimension: 76.9*63.9*3.3(mm)

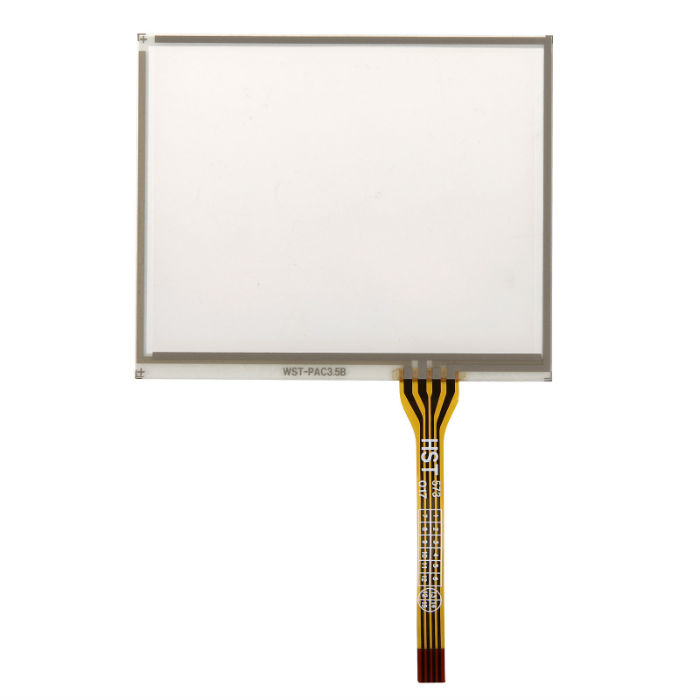

Touch Screen: Resistive Touch Screen(optional)

MOQ: 1pc

Contact now


General Description:

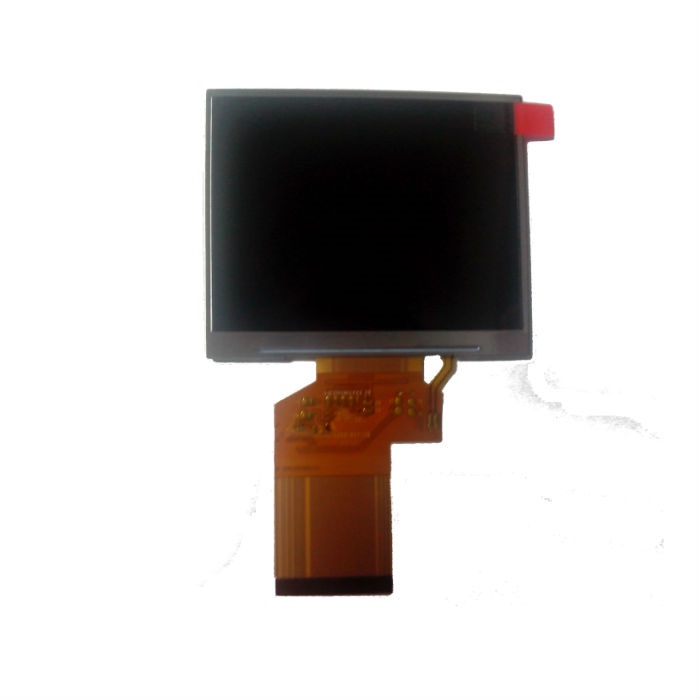

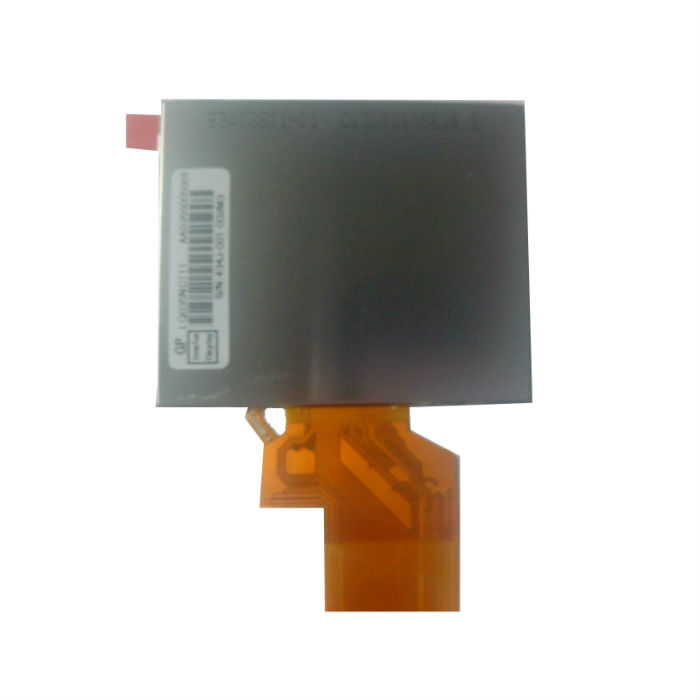

LQ035NC111 is a transmissive type color active matrix liquid crystal display (LCD), which uses amorphous thin film transistor(TFT) as switching devices. This panel has a 3.5 inches diagonally measured active display area with QVGA(320X RGB x 240) resolution.

LQ035NC111 is designed with 54pin serial interface. Matching touch screen is available.

Packaging Form:

The LCD module is placed on the tray.

One tray includes 8pcs.

One carton includes 21pcs tray(20 tray+1 empty tray).

160pcs per carton.
