LVDS to VGA LCD monitor control board
Type: Drive IC
Main CHIPSET: RTD2270L-CG
Power requirement: 12V DC,12V(Built in),12V/5V(Built in)
Panel Interface: Single/Dual LVDS
Panel Max Resolution: 1680x1050@75Hz
POWER to PANEL: 3.3V,5V,12V
KEY FUNCTION: MENU,VOL+,VOL-,POWER,AUTO/EXIT

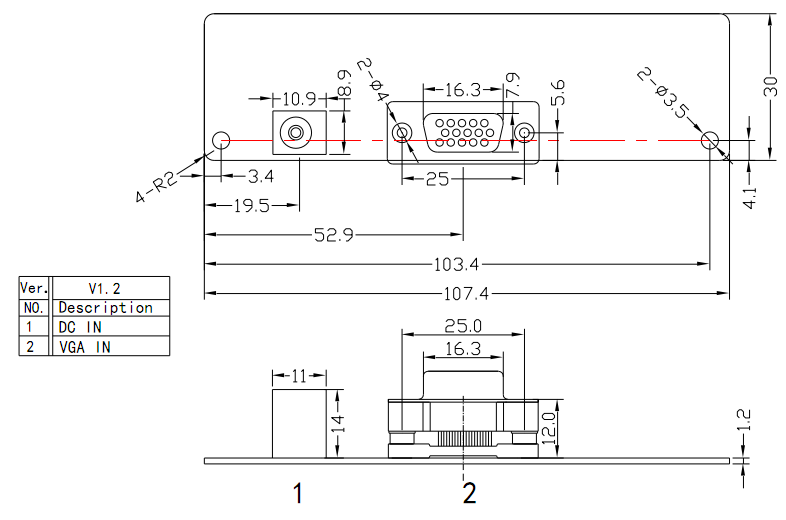

PCB Dimensions: 107.4mm(L)*30mm(W)
Storage temperature: -10~60°C
Operation temperature: 0~40°C
Introduction
General Description:
M.RT2270C.3A is a LCD monitor control board,The resolution is up to 1680x1050@75HZ. Its color reach 24bit potentially. H-Frequency signal range from 30 to 80 KHz, V-Frequency signal 60 to 75 Hz.
Payment Terms: 100% in Advance
Shipping Methods:
M.RT2270C.3A is a LCD monitor control board,The resolution is up to 1680x1050@75HZ. Its color reach 24bit potentially. H-Frequency signal range from 30 to 80 KHz, V-Frequency signal 60 to 75 Hz.
M.RT2270C.3A supports synchronize automatic detection and Dynamic Contrast Control, apply to Sync Separator for extracting Hsync and Vsync.
