HDMI USB HDCP LCD TV PCB Control Board
Construction: PCB with components
Panel Type: LED
Panel Interface: Single/Dual LVDS
Panel Max Resolution: 1920x1080

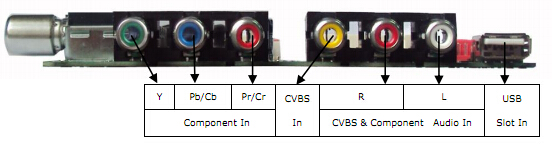

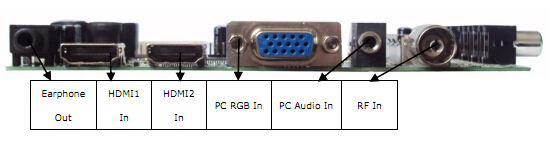

VIDEO INPUT: TV,PC-RGB,CVBS,HDMI
AUDIO INPUT: Component Audio,CVBS
POWER to PANEL: 5V/12V
KEY FUNCTION: INPUT,CH+,CH-,VOL+,VOL-,MENU,POWER
COMB FILTER: 3D
DEINTERLACE: 3D
Introduction
General Description:

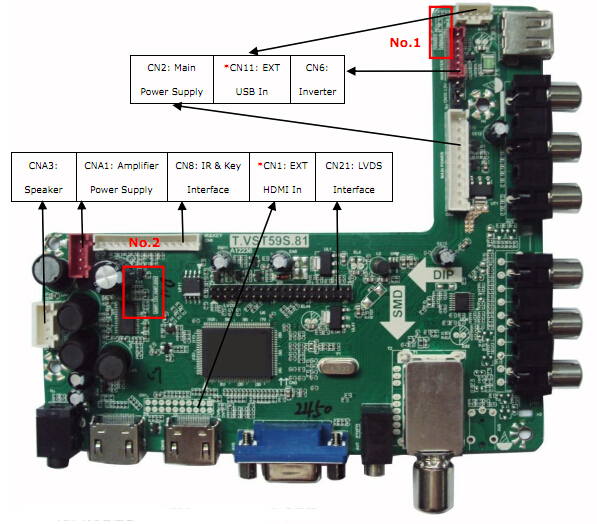

T.VST59S.81A is analog TV control board, which is suitable for Asia-Pacific and Middle-East market.
It can support more than 26 inch LED panels which resolution is up to 1920×1080.
USB2.0 support multimedia playback and Software upgrade.
Payment Terms: 100% in Advance
Shipping Methods:
T.VST59S.81A is analog TV control board, which is suitable for Asia-Pacific and Middle-East market.
It can support more than 26 inch LED panels which resolution is up to 1920×1080.
USB2.0 support multimedia playback and Software upgrade.
The HDMI support 1.4,and the HDCP support1.1.
