Products

DVI+VGA Monitor PCB Control Board

Construction: PCB with components

Panel Type: LED/LCD

Panel Interface: Single/Dual LVDS (8bit)

Panel Max Resolution: 1680x1050(RTD2261CG)/1920x1080(RTD2281CG)

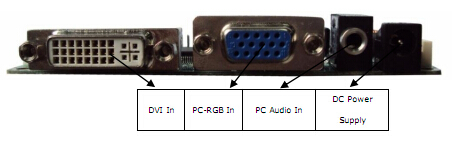

VIDEO INPUT: PC-RGB/DVI

AUDIO INPUT: PC Audio,Earphone input

POWER to PANEL: 3.3V/5V/12V

KEY FUNCTION: POWER,MENU,VOL+,VOL-,ADJUST/EXIT

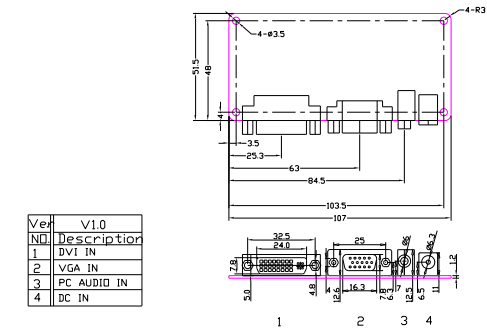

PCB DIMENSIONS: 107mm(L)*51.5mm(W)*18mm(H)

Operation temperature: 0~40°C

Contact now

Introduction

General Description:

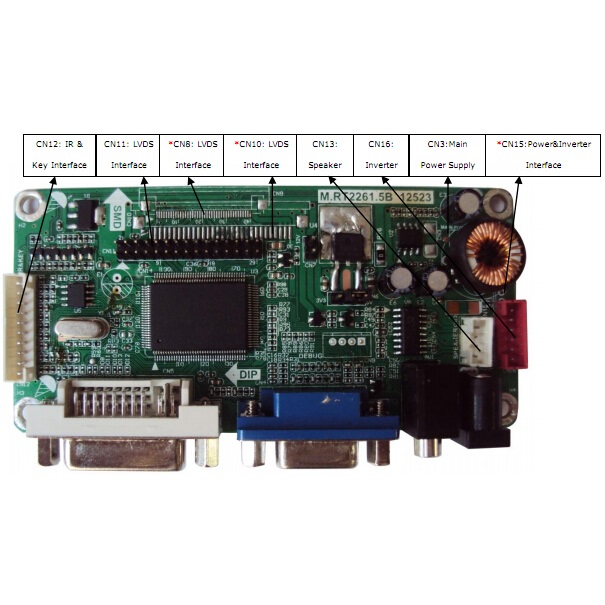

M.RT2261.5B is a Monitor PCB Control Board designed with DVI+VGA ports.

It can support LED/LCD panels which resolution is up to 1920x1080.
