USB VGA HDMI LCD TV PCB Control Board
Main CHIPSET: TSUMV59XU-Z1
Panel Type: LED
Panel Interface: Single/Dual LVDS
Panel Max Resolution: 1920x1080
VIDEO INPUT: TV,PC-RGB,CVBS
AUDIO INPUT: PC Audio,CVBS
POWER to PANEL: Management
KEY FUNCTION: MENU,CH+,CH-,VOL+,VOL-,INPUT,POWER
COMB FILTER: 3D
DEINTERLACE: 3D
Introduction
General Description:

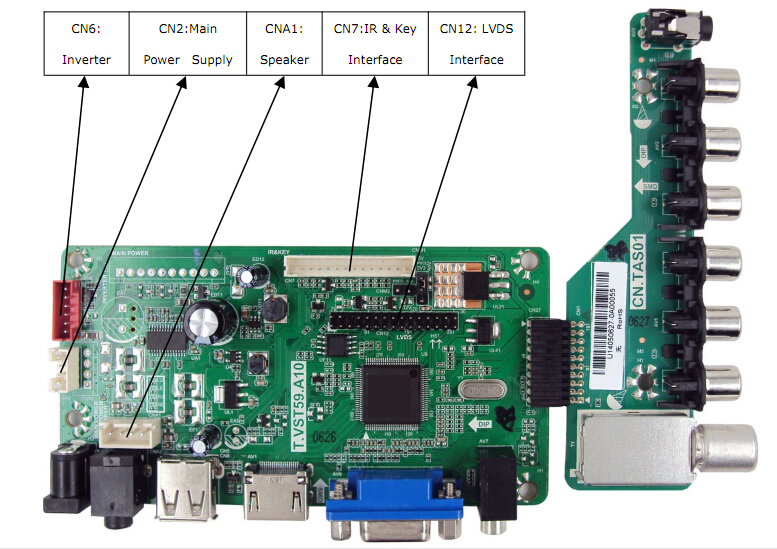

T.VST59.A10 is analog TV control board, which is suitable for Asia-Pacific and Middle-East market. It can support the panel whose sizes are more than 26 inches and the max resolution is 1920×1080.
USB2.0 support multimedia playback and Software upgrade.
Payment Terms: 100% in Advance
Shipping Methods:
T.VST59.A10 is analog TV control board, which is suitable for Asia-Pacific and Middle-East market. It can support the panel whose sizes are more than 26 inches and the max resolution is 1920×1080.
USB2.0 support multimedia playback and Software upgrade.
HDMI 1.3/1.4 compliant, HDCP 1.2 compliant.
