HDMI+DVI+VGA LCD controller board
Construction: PCB with components
Panel Type: LED/LCD
Panel Interface: Single/Dual LVDS (8bit)
Panel Max Resolution: 2048x1152

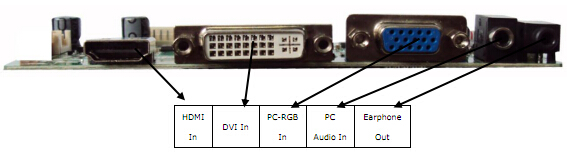

VIDEO INPUT: PC-RGB/HDMI/DVI
AUDIO INPUT: PC Audio,Earphone input
POWER to PANEL: 3.3V/5V/12V
KEY FUNCTION: POWER,MENU,VOL+,VOL-,ADJUST/EXIT

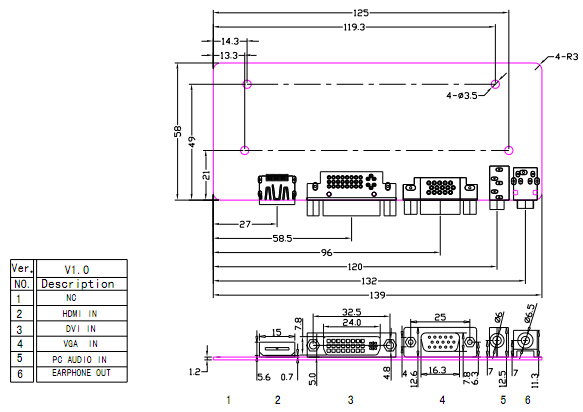

PCB DIMENSIONS: 139mm(L)*58mm(W)*17mm(H)
Operation temperature: 0~40°C
Introduction
General Description:
Payment Terms: 100% in Advance
Shipping Methods:

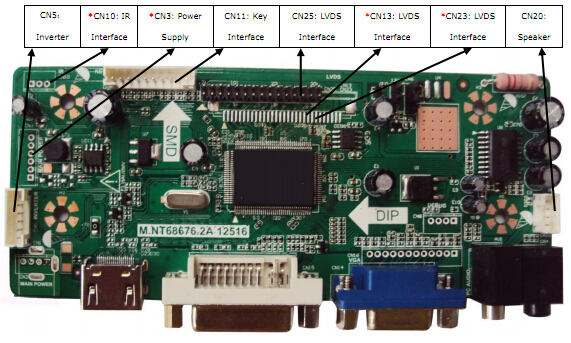

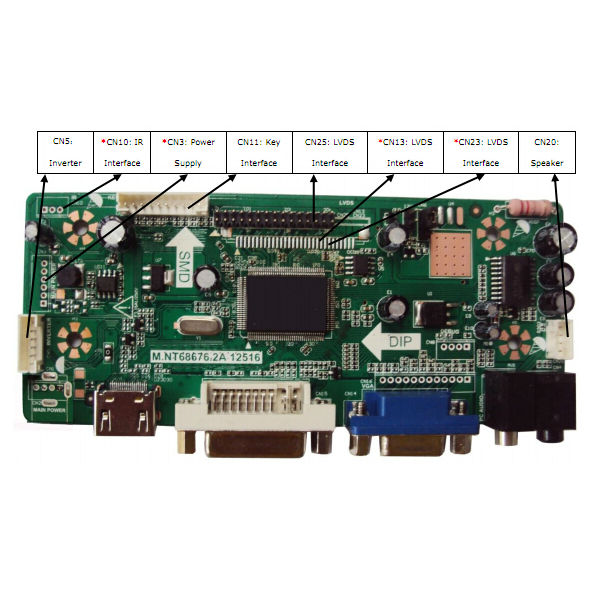

M.NT68676.2A is a monitor control board which can support LED/LCD panels with resolution up to 2048×1152.
