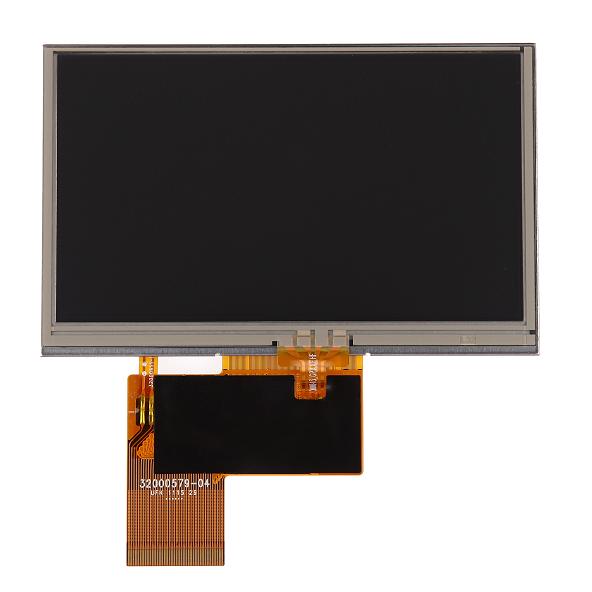

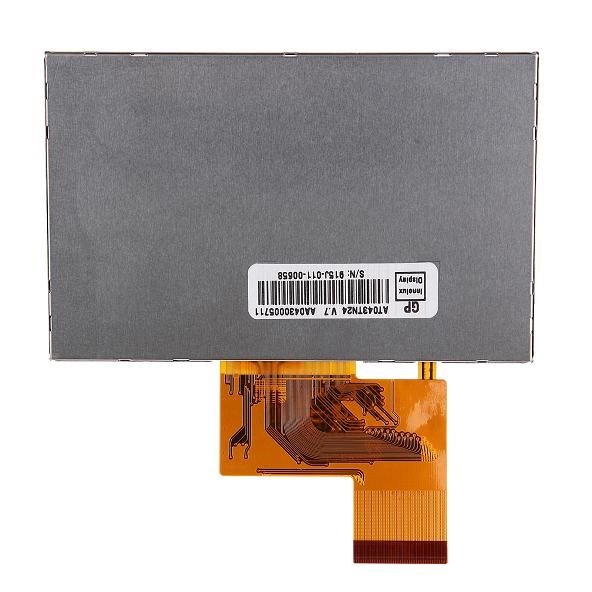

4.3'' 480x272 TFT LCD touch screen module AT043TN24 V.7
A grade new original,12months warranty
Brand Name: InnoLux
Luminance(nits): 400
Display Mode: TN,normally white,transmissive
Viewing Angle: 50/70/70/70
Interface: 40pin FPC,parallel 24bit RGB(TTL)
Operation Temperature: -20~70℃
Outline Dimension: 105.5*67.2*4.05(mm)
Touch Screen: Resistive Touch Screen integrated
MOQ: 1pc
Introduction
General Description:
AT043TN24 V.7 is a transmissive type color active matrix liquid crystal display (LCD), which uses amorphous thin film transistor(TFT) as switching devices. This panel has a 4.3 inches diagonally measured active display area with WQVGA(480X RGB x 272) resolution.
Payment Terms: 100% in Advance
Shipping Methods:
AT043TN24 V.7 is a transmissive type color active matrix liquid crystal display (LCD), which uses amorphous thin film transistor(TFT) as switching devices. This panel has a 4.3 inches diagonally measured active display area with WQVGA(480X RGB x 272) resolution.
AT043TN24 V.7 is designed with 4-wire resistive touch screen integrated.
Packaging Form:
Amount Per Box: 160pcs
Box Size: 530(L) x 355(W) x 255(H) (mm)
Box Gross Weight: 15.8kgs
Payment Terms: 100% in Advance
Shipping Methods:
