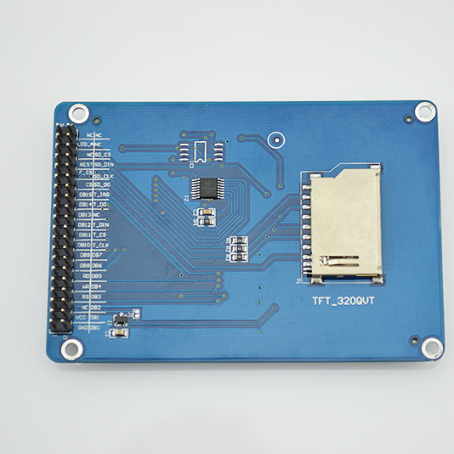

3.2'' touch screen LCD module with controller ILI9341,baseboard and SD card socket

Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Control
  • Model Number: TFT_320QVT_9341
  • Type: TFT
  • Size: 3.2''
  • Resolution: 240*RGB*320
  • LCD Drive Voltage: 3.3V
  • Quality grade: A grade
  • Driver IC: ILI9341
  • Luminance: 320 nits
  • Backlight: White LED
  • Outline dimension: 57.5 mm * 94.5 mm
  • Touch screen: 4 wire resistive
  • Assembly Type: COG+FPC
Contact now


Product Description

This is a color active matrix TFT (Thin Film Transistor) LCD (liquid crystal display) that uses amorphous silicon TFT as a switching device. This model is composed of a Transmissive type TFT-LCD Panel, driver circuit , back-light unit, base board with SD card socket. The resolution of a 3.2'' TFT-LCD contains 240x320 pixels, and can display up to 65K colors.

* Features
(1) Display Type: 3.2’’TFT, Transmissive, 3 o’clock,Normal White.
(2) With white LED Backlight
(3) Control IC ILI9341




Packaging & Shipping

Shipping Label on the rear side of TFT-LCD display

Shipping ways:

1)Packing---Forwarder---HK Port---DHL---Tracking number

2)Contact DHL/UPS/FedEx directly with customer's account

3)To be picked up
