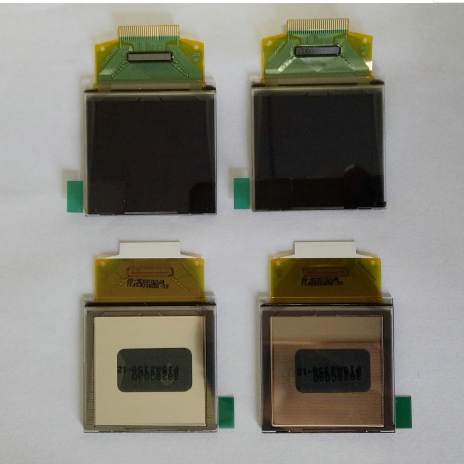

1.5'' Square LCD Display, 128x128 OLED, SSD1351 controller

Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: UG
  • Model Number: UG-2828GDEDF11
  • Usage: Indoor & Outdoor
  • Tube Chip Color: Full Color
  • Display Function:Animation,Graphics,Video
  • Pixels: 128x128
  • Screen Dimension: 1.5 inch
  • Display Mode: Passive Matrix
  • Display Color: 262,144 Colors (Maximum)
  • Drive Duty: 1/128 Duty
  • Panel Size: 33.80 * 34.00 * 1.60 (mm)
  • Active Area:: 26.855 * 26.864 (mm)
  • Weight: 3.75 (g)
  • COF Number: SSD1351U3
  • Interface: 8bits 68XX/80XX Parallel,SPI
  • Pin Number: 30, 0.5mm pitch
  • Material: Soda Lime / Polyimide
Contact now

Introduction

Product Description

This is a 1.5'' 128x128 OLED display screen. Unlike TFT LCD, its display mode is passive matrix. So it does not need LED or any other backlight to make it bright. OLED has free viewing angle and can be used for outdoor products.

This OLED displays colourful content. Shape is square.



Packaging & Shipping

 COF Package
