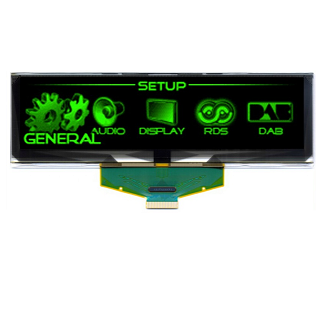

5.5 inch OLED display screen UG-5664ASGGF01, 256*64 dot matrix
Quick Details
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: UG
- Model Number: UG-5664ASGGF01
- Display Type: PM-OLED
- Color Depth: 16 Grey Scales(Yellow,Green)
- Module Construction: COF
- Module Size: 146.00 * 65.00 * 2.00 (mm)
- Panel Size: 146.00 * 45.00 * 2.00 (mm)
- Active Area: 135.65*33.89(mm)
- Duty: 1/64
- Brightness: 80(Typ.) @ 15V
- Interface: Parallel, 3/4-wire SPI
- Assembly: 30-pin ZIF Connector
Introduction
Product Description
PM-OLED features: Simple structure, self light emitting, light weight, low driving voltage, wide viewing angle, high brightness and so on.
1. You only need 2 ~ 10VDC voltage to operate on it;
2. Viewing angle is wider than 160 degrees;
3. Response time is less than 1 μs;
4. High brightness (100 ~ 14000 cd/m2), high lumen rate (16 ~ 38 lm/W);
5. Wide operating temperature:-40℃ ~100 ℃.
