1.45'' 160x128 color OLED demo module with PCB/T-CON board
Quick Details
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: Control
- Model Number: OEL0145PCB
- Display Type: PM-OLED module
- Resolution: 160x128
- Outline dimension: 60.0*39.9(mm)
- Display Area: 28.78*23.024(mm)
- Display controller IC: SEPS525
- Color: 65,536 Colors
- Interface: 8-bit parallel
- PCB supports: 1.45'', 1.69'' OLED
- Outdoor use: Yes
- Power Supply: 3.3V
Introduction
Product Description
PM-OLED features: Simple structure, self light emitting, light weight, low driving voltage, wide viewing angle, high brightness and so on.

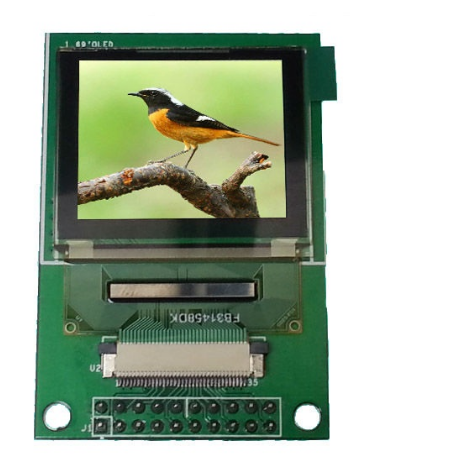

This display module is composed of a 1.45'' 160x128 OLED screen and a PCB board with DC boost chip integrated. The 1.45'' OLED screen needs 14V power supply originally. But with this demo board,you can use the 1.45'' OLED screen simply with 3.3V external power supply.
The demo board supports 1.69'' OLED screen too. Hope it will be useful to you and reduce the development time.
