1.5'' SSD1351 Square OLED display, 128x128 dot matrix,I2C SPI 8bit
Quick Details
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: Control
- Model Number: UG-2828GDEDF11-PCB
- Usage: Indoor & Outdoor
- Tube Chip Color: Full Color
- Display Function:Animation,Graphics,Video
- Pixels: 128x128
- Screen Dimension: 1.5 inch
- Display Mode: Passive Matrix
- Display Color: 262,144 Colors (Maximum)
- Drive Duty: 1/128 Duty
- Outline Dimension: 44.0 * 40.0 (mm)
- Active Area:: 26.855 * 26.864 (mm)
- COF Number: SSD1351U3
- Interface: 8bits 68XX/80XX Parallel,SPI
- Material: Soda Lime / Polyimide
- Composition: OLED screen+PCB board
- Power Supply: 3.3V
Introduction
Product Description

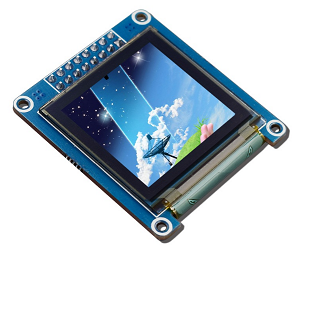

This is a 1.5'' 128x128 OLED display screen. Unlike TFT LCD, its display mode is passive matrix. So it does not need LED or any other backlight to make it bright. OLED has free viewing angle and can be used for outdoor products.
This OLED displays colourful content. Shape is square.
Features:
- Integrated with SSD1351 OLED UG-2828GDEDF11 and PCB baseboard which converts FPC connecting to 2 x 8pin header.
- 4 communicating ways: 3-wire SPI, 4-wire SPI, 6800, 8080
- 3.3V power supply
Packaging & Shipping
COF Package
