7'' analog LCD module AT070TN07 V.D PCB board
Quick Details
D/C:
2014
Package:
COB COG
Model Number:
CT-02A
Type:
LCD control board
Brand Name:
Control
Place of Origin:
Guangdong, China (Mainland)
Outline Dimensions:
62.4mm*50.8mm
Thickness:
<8mm, including PCB board
NTSC/PAL CVBS input:
2 channels(DVD/Digital camera /camera video signal )
S-Video input:
optional
VGA input:
without
Test Patterns:
Red, Green, Blue, Black, White, Gray, Color, Dot
Default Setting:
2AV
OSD Functions:
BRI /CNT /SAT adjust,Panel Rotate/Scale
Car Reverse Function:
Optional
IR functions:
Supports
Introduction

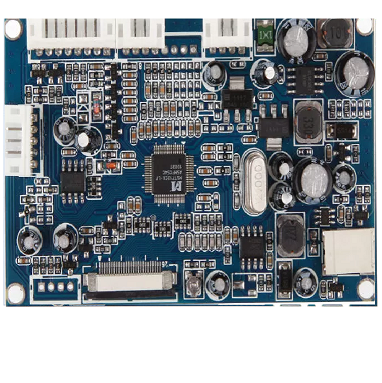

2. Picture
3.Control board with LCD panel connecting example
4.Adjusting Key pad
Packaging
| Selling Units: | Single item |
| Single package size: | 30X25X10 cm |
| Single gross weight: | 1.0 KG |
