Products

LCD PCB control board for 40pin TFT LCD

Quick Details

  • D/C: 2014
  • Package: COB,COG
  • Model Number: CT-057DO
  • Type: LCD control board
  • Brand Name: Control
  • Place of Origin: Guangdong, China (Mainland)
  • Outline Dimensions: 105.0mm*67.0mm
  • Thickness: <8mm, including PCB board
  • NTSC/PAL CVBS input: 2 channels(DVD/Digital camera /camera video signal )
  • S-Video input: optional
  • VGA input: without
  • Test Patterns: Red, Green, Blue, Black, White, Gray, Color, Dot
  • Operating Temperature: -20~+65 centi degree
  • Dissipation Power: low
  • Application: VCD/DVD Player
  • Supply Voltage: 7V~15V
Contact now

Introduction

ackaging & Delivery

Delivery Time 2~4 WEEKS

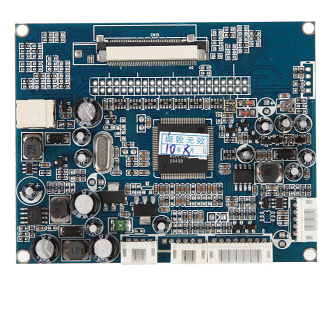

2. Picture

3.Control board with LCD panel connecting example

4.Adjusting Key pad
