50pin LCD PCB driver board with AV inputs

Quick Details

  • D/C: 2014
  • Package: COB COG
  • Model Number: CT-057BCO
  • Type: LCD control board
  • Brand Name: Control
  • Place of Origin: Guangdong, China (Mainland)
  • Outline Dimensions: 115.0mm*90.0mm
  • Thickness: <8mm, including PCB board
  • NTSC/PAL CVBS input: 2 channels(DVD/Digital camera /camera video signal )
  • S-Video input: optional
  • VGA input: without
  • Test Patterns: Red, Green, Blue, Black, White, Gray, Color, Dot
  • Default Setting: 2AV
  • OSD Functions: BRI /CNT /SAT adjust,Panel Rotate/Scale
  • Car Reverse Function: Optional
  • IR functions: Supports
Contact now

Introduction

Packaging & Delivery

Packaging Details foam bag,carton
Delivery Time 2~4 WEEKS

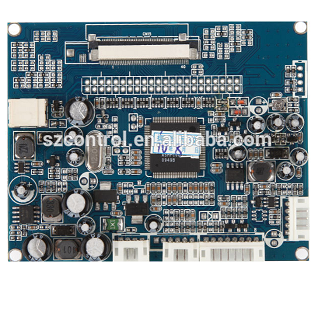

2. Picture

3.Control board with LCD panel connecting example

4.Adjusting Key pad
