VGA+AV main board for 33pin/40pin/45pin Digital TFT LCD modules
Quick Details
- D/C: 2014
- Package: COB COG
- Model Number: CT-057D
- Type: LCD control board
- Brand Name: Control
- Place of Origin: Guangdong, China (Mainland)
- Outline Dimensions: 105.0mm*67.0mm
- Thickness: <8mm, including PCB board
- NTSC/PAL CVBS input: 2 channels
- S-Video input: optional
- VGA input: 1 channel
- YPBPR input: optional,1 channel
- Default Setting: 2AV+VGA,YPBPR depends on Sub Menu.
- OSD Functions: BRI /CNT /SAT adjust,Panel Rotate/Scale
- Car Reverse Function: Optional
- IR functions: Supports
Introduction
Packaging & Delivery
| Packaging Details | carton |
|---|---|
| Delivery Time | 2week |

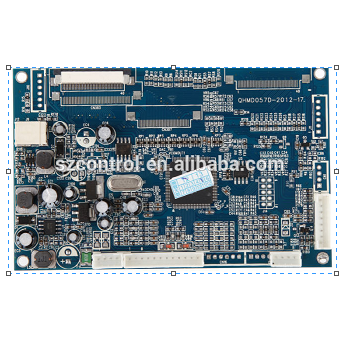

2. Picture
3.Control board with LCD panel connecting example
4.Adjusting Key pad
