DVI+VGA Monitor PCB Control Board for LVDS LCD panels
Quick Details
- D/C: PCB with components.
- Package: PCB with components.
- Model Number: M.RT2261.5B
- Type: Drive IC
- Brand Name: Control
- Place of Origin: Guangdong, China (Mainland)
- CHIPSET: RTD2261W-CG/RTD2281W-CG
- Panel Type: LED/LCD
- Panel Interface: Single/Dual LVDS (8bit)
- Panel Max Resolution:1680x1050(RTD2261CG)/1920x1080(RTD2281CG)
- VIDEO INPUT: PC-RGB/DVI
- AUDIO INPUT: PC Audio,Earphone input
- POWER to PANEL: 3.3V/5V/12V
- KEY FUNCTION:POWER,MENU,VOL+,VOL-,ADJUST/EXIT
- PCB DIMENSIONS:107mm(L)*51.5mm(W)*18mm(H)
- Operation temperature: 0~40°C
Introduction
Product Description
1) General Description
M.RT2261.5B is a Monitor PCB Control Board designed with DVI+VGA ports.
It can support LED/LCD panels which resolution is up to 1920x1080.
2) PCB Dimensions

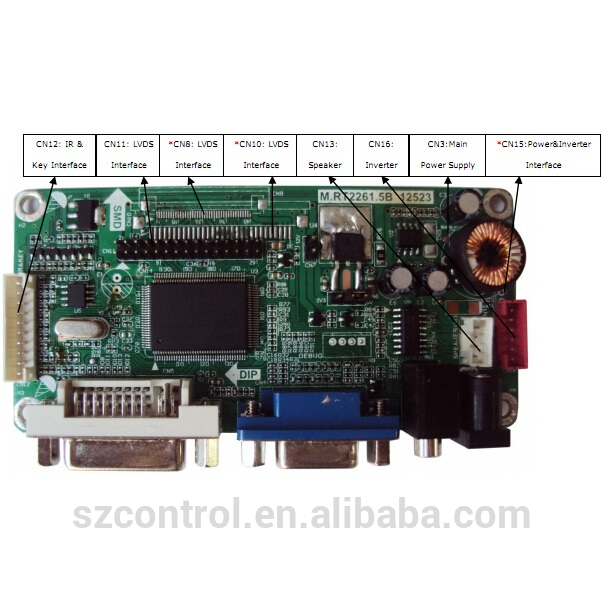

3) FRONT VIEW
Packaging & Shipping
Packed with foam and cartons.
Shipping ways:
1)Packing---Forwarder---HK Port---DHL---Tracking number
Or HK warehouse----Forwarder----DHL tracking number
Or Taiwan warehouse----Forwarder---DHL tracking number
2)Contact DHL/UPS/FedEx directly with customer's account
3)To be picked up
