USB VGA HDMI LCD TV PCB Control Board+Remote Control+OSD keypad
Quick Details
- D/C: PCB with components.
- Package: PCB with components.
- Model Number: T.VST59.A10
- Type: Drive IC
- Brand Name: Control
- Place of Origin: Guangdong, China (Mainland)
- Main CHIPSET: TSUMV59XU-Z1
- Panel Type: LED
- Panel Interface: Single/Dual LVDS
- Panel Max Resolution: 1920x1080
- VIDEO INPUT: TV,PC-RGB,CVBS
- AUDIO INPUT: PC Audio,CVBS
- POWER to PANEL: Management
- KEY FUNCTION:MENU,CH+,CH-,VOL+,VOL-,INPUT,POWER
- COMB FILTER: 3D
- DEINTERLACE: 3D
Introduction
1) General Description
T.VST59.A10 is analog TV control board, which is suitable for Asia-Pacific and Middle-East market. It can support the panel whose sizes are more than 26 inches and the max resolution is 1920×1080.
USB2.0 support multimedia playback and Software upgrade.
HDMI 1.3/1.4 compliant, HDCP 1.2 compliant.
2) Side view

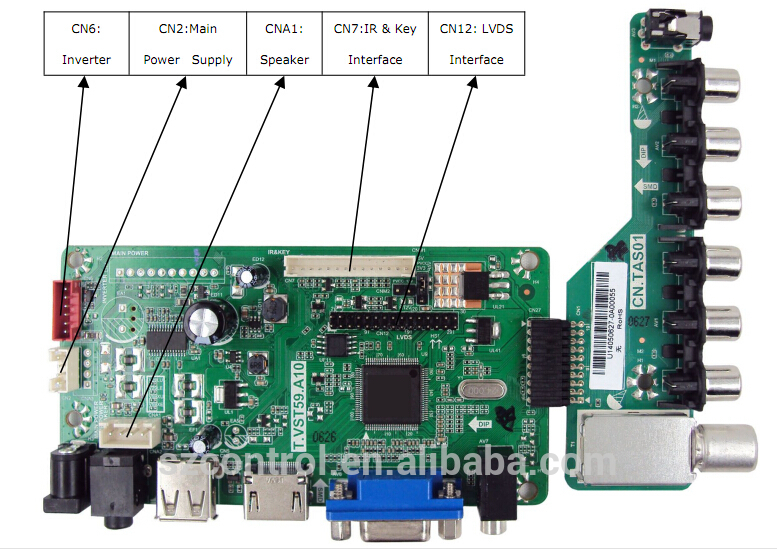

3) FRONT VIEW
4) Requirement of wire harness(optional)
Packed with foam and cartons.
Shipping ways:
1)Packing---Forwarder---HK Port---DHL---Tracking number
Or HK warehouse----Forwarder----DHL tracking number
Or Taiwan warehouse----Forwarder---DHL tracking number
2)Contact DHL/UPS/FedEx directly with customer's account
3)To be picked up
