HDMI USB HDCP LCD TV PCB Control Board
Quick Details
- D/C: PCB with components.
- Package: PCB with components.
- Model Number: T.VST59S.81A
- Type: Drive IC
- Brand Name: Control
- Place of Origin: Guangdong, China (Mainland)
- Main CHIPSET: TSUMV59XUS-Z1/TSUMV59XES-Z1
- Panel Type: LED
- Panel Interface: Single/Dual LVDS
- Panel Max Resolution: 1920x1080
- VIDEO INPUT: TV,PC-RGB,CVBS,HDMI
- AUDIO INPUT: Component Audio,CVBS
- POWER to PANEL: 5V/12V
- KEY FUNCTION:INPUT,CH+,CH-,VOL+,VOL-,MENU,POWER
- COMB FILTER: 3D
- DEINTERLACE: 3D
Introduction
1) General Description
T.VST59S.81A is analog TV control board, which is suitable for Asia-Pacific and Middle-East market.
It can support more than 26 inch LED panels which resolution is up to 1920×1080.
USB2.0 support multimedia playback and Software upgrade.
The HDMI support 1.4,and the HDCP support1.1.
2) Side view

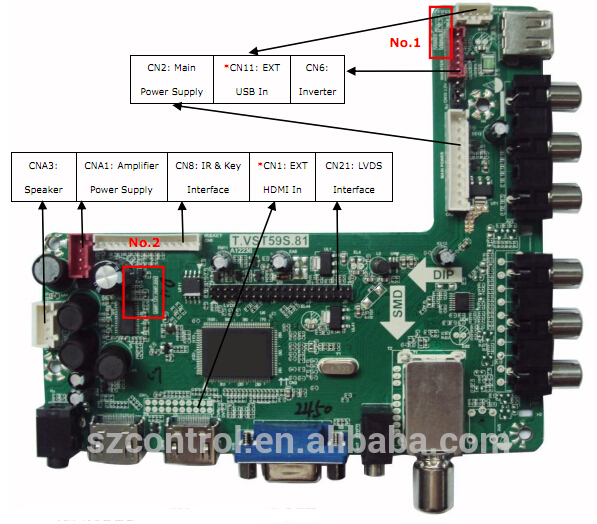

3) FRONT VIEW
4) PCB Dimensions
Packed with foam and cartons.
Shipping ways:
1)Packing---Forwarder---HK Port---DHL---Tracking number
Or HK warehouse----Forwarder----DHL tracking number
Or Taiwan warehouse----Forwarder---DHL tracking number
2)Contact DHL/UPS/FedEx directly with customer's account
3)To be picked up
