TTL to LVDS PCB conversion board for general 50pin TTL LCD
Quick Details
- D/C: PCB with components.
- Package: PCB with components.
- Model Number: PCB800181
- Type: Drive IC
- Brand Name: Control
- Place of Origin: Guangdong, China (Mainland)
- Main CHIPSET: THC63LVDF84B
- LVDS interface: DF14-20P standard LVDS
- Panel Interface: Common 50PIN-0.5MM TTL FPC
- Inverter Interface: 6PIN-2.0 Standard connector
- Power input: 3.3V for panel,5V for backlight
- Backlight driver: Support LED backlight
- Dimensions: 56.5MMX40.8MM
Introduction
Product Description
1) General Description
PCB800181 is a signal conversion board integrated with LED backlight driver. It has LVDS signal input and TTL signal output and can also generate voltage like AVDD,VGL,VGH,VCOM and so on.

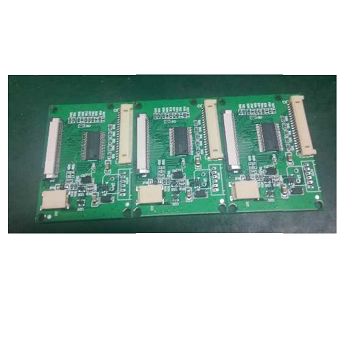

2) Real picture
3) PCB drawing
