LVDS to VGA LCD monitor control board for resolution up to 1680x1050
Quick Details
- D/C: PCB with components.
- Package: PCB with components.
- Model Number: M.RT2270C.3
- Type: Drive IC
- Brand Name: Control
- Place of Origin: Guangdong, China (Mainland)
- Main CHIPSET: RTD2270L-CG
- Power requirement: 12V DC,12V(Built in),12V/5V(Built in)
- Panel Interface: Single/Dual LVDS
- Panel Max Resolution: 1680x1050@75Hz
- POWER to PANEL: 3.3V,5V,12V
- KEY FUNCTION:MENU,VOL+,VOL-,POWER,AUTO/EXIT
- PCB Dimensions: 107.4mm(L)*30mm(W)
- Storage temperature: -10~60°C
- Operation temperature: 0~40°C
Introduction
1) General Description
M.RT2270C.3A is a LCD monitor control board,The resolution is up to 1680x1050@75HZ. Its color reach 24bit potentially. H-Frequency signal range from 30 to 80 KHz, V-Frequency signal 60 to 75 Hz.
M.RT2270C.3A supports synchronize automatic detection and Dynamic Contrast Control, apply to Sync Separator for extracting Hsync and Vsync.

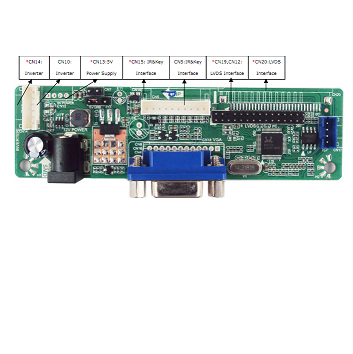

2) Side view
