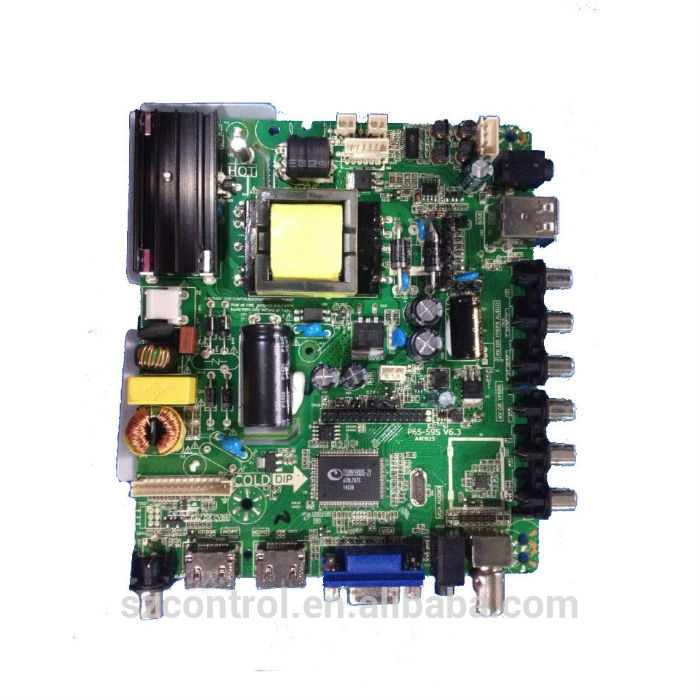

Universal LCD TV main controller board with HDMI+USB+VGA
Quick Details
- D/C: PCB with components.
- Package: PCB with components.
- Model Number: P65-59S V6.3-A
- Type: Drive IC
- Brand Name: Control
- Place of Origin: Guangdong, China (Mainland)
- CHIPSET: TSUMV59X series
- Panel Max Resolution: 10-bit double LVDS FULL HD panel
- VIDEO INPUT: TV/CVBS/YPbPr /YCbCr/PC-RGB/HDMI
- AUDIO INPUT: AV Audio Input,PC-RGB
- POWER to PANEL: 5V/12V
- EXPANSION FUNCTION: USB(Two Channels)
- PCB DIMENSIONS:128.1mm(W)*146.5mm(H)*11.9mm(T)
- AUDIO OUTPUT: 2*8W @ 8ohm
- VIDEO OUTPUT: CVBS
- Operation temperature: 0~ +40℃
Introduction
1) General Description
This is a multi-purpose LCD controller designed to support FULL HD LCD panel.
P65-59S V6.3-A can support HDMI, VGA, PC AUDIO, TV signal, YpbPr, AV, USB. It can also support Video and Earphone output.
The power part of P65-59S V6.3-A is an energy-efficient ultrathin switching power supply unit,with max 87W/115VAC input,5watts multi-output. It fits to 26” to 42” LED backlight TFT panel.
2) OPTIONS
OPTION 1
OPTION 2
OPTION3
Packed with foam and cartons.
Shipping process: Packing---Forwarder---HK Port---DHL---Tracking number
Or HK warehouse----Forwarder----DHL tracking number
Or Taiwan warehouse----Forwarder---DHL tracking number
