LVDS to HDMI or VGA mainboard for LCD panel, RTD2668 controller
Quick Details
- D/C: PCB with components.
- Package: PCB with components.
- Model Number: RTD2668 V1.1
- Type: Drive IC
- Brand Name: Control
- Place of Origin: Guangdong, China (Mainland)
- CHIPSET: RTD2668
- Panel Type: LCD
- Panel Interface: Single/Dual LVDS
- Panel Max Resolution: 1920x1080
- VIDEO INPUT: PC-RGB,I2C
- POWER to PANEL: 3.3V/5V/12V
- KEY FUNCTION:EXIT/SELECT,MENU,AUTO,LEFT,RIGHT,ON/OFF
- Terminals: TV,DC,PC audio,output to panel
- External EDID: Support
- Outline Dimension:107mm*66mm*13mm
Introduction
1) General Description
RTD2668 V1.1 is a multi-purpose LCD monitor. It is designed to support dual/single LVDS LCD panel.
RTD2668 V1.1 can support external EDID.
The main feature of RTD2668 V1.1 can support HDMI,VGA, PC Audio signal input.
Note:The specification of the board includes the description of all functions.Therefore,our clients can select the functions which they require to produce the board.But the specification can be introduced universally.
2) Side view

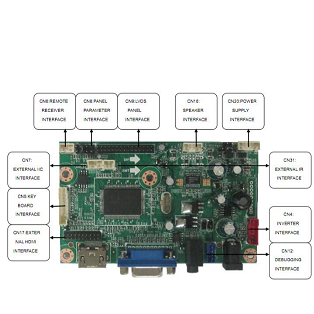

3) TOP VIEW
Packed with foam and cartons.
Shipping ways:
1)Packing---Forwarder---HK Port---DHL---Tracking number
Or HK warehouse----Forwarder----DHL tracking number
Or Taiwan warehouse----Forwarder---DHL tracking number
2)Contact DHL/UPS/FedEx directly with customer's account
3)To be picked up
