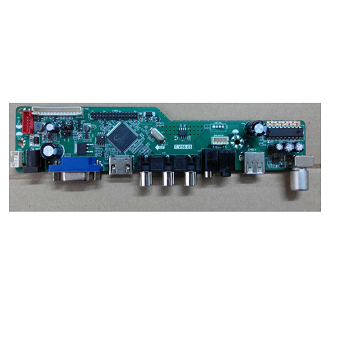

V56 universal LCD TV main board,HDMI+AV+USB+CVBS
Quick Details
- D/C: PCB with components.
- Package: PCB with components.
- Model Number: T.V56.03
- Type: Drive IC
- Brand Name: Control
- Place of Origin: Guangdong, China (Mainland)
- CHIPSET: TSUMV56RUU-Z1
- Panel Max Resolution: 1920*1080
- VIDEO INPUT: ATV,PC-RGB,CVBS,HDMI
- AUDIO INPUT: PC Audio,CVBS
- POWER to PANEL: 3.3V/5V/12V
- USB FUNCTION: software upgrade, multimedia play
- OSD LANGUAGE: English, French, Spanish
- Operation temperature: 0~ +40℃
- Panel Type: TFT LCD
- DC Adapter: 12V Input
Introduction
1) General Description
This is an universal LCD TV main board with matching remote control, LVDS cable, OSD keypad and so on optional.
Please note that:
The whole machine certification performance will be subject to the impact of the whole
machine, must use the whole machine to test and confirm.
When using the I2C interface to communicate with the outside, please confirm the
matching of the pull up resistance and the series resistance with CVTE hardware engineer.
To ensure communicating properly between the mainboard and external expansion
modules, it's recommend that test related control and communication signals and power
supply voltage waveform after installing prototype to confirm whether to meet the relevant
requirements.
2)Pictures
Packed with foam and cartons.
Shipping process: Packing---Forwarder---HK Port---DHL---Tracking number
Or HK warehouse----Forwarder----DHL tracking number
Or Taiwan warehouse----Forwarder---DHL tracking number
We supply A grade new original InnoLux and AUO LCD panels.
Matching touch screens and driver boards are also available.
We advise our customers:
1)Please contact us for detailed specifications and check them carefully before choosing a LCD module, touch screen or driver board.
2)Please do let us know if quantity and presentation quality are OK within 1 week after signing the goods.
3)Please share information as much as possible when you meet a problem in using our products. That will do us a great favor to find a solution.
4)We are responsible for our LCD parts but joint responsibility is not included.
Control Electronic Co.,Ltd. was founded in 2008 in Shenzhen.
Before that,the leaders had been in LCD panel industry for more than 6 years.
We mainly supply A grade new LCD panels from InnoLux and AUO.
Our engineer has 9 years' experience working in InnoLux.
Matching touch panels and driver boards are also available.
To spread our business,we had a new office in Shanghai this year.
We can trade in China mainland,HK or send goods to your destination.
Products are mainly used in industry control,security system,medical device,tablets,advertising machine and other instruments about display.
We look forward to cooperations and comments from you.
