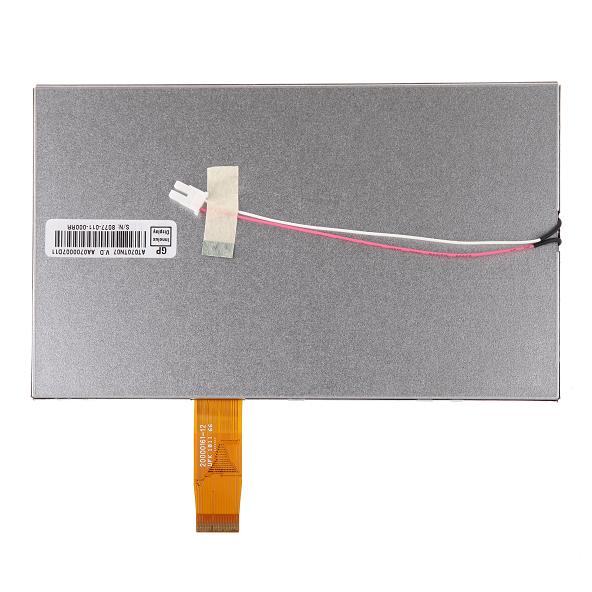

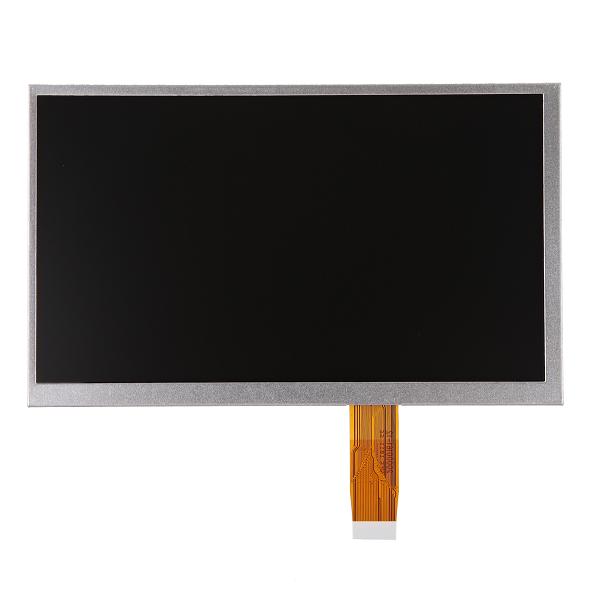

7'' 480x234 analog 26pin TFT LCD module AT070TN07 V.D
A grade new original,12months warranty
Brand Name: InnoLux
Luminance(nits): 200
Contrast(%): 300
Display Mode: TN,normally white,transmissive
Interface: TFT Specific Analog RGB(26pin FPC)
Operation Temperature: -30~85℃
Outline Dimension: 164.9*100.0*5.7(mm)
Touch Screen: ResistiveTouch Screen
MOQ:1PC
Introduction
General Description:
AT070TN07 V.D is a transmissive type color active matrix liquid crystal display (LCD), which uses amorphous thin film transistor(TFT) as switching devices. This panel has a 7.0 inches diagonally measured active display area with 480X RGB x 234 resolution.
Packaging Form:
Payment Terms: 100% in Advance
Shipping Methods:
AT070TN07 V.D is a transmissive type color active matrix liquid crystal display (LCD), which uses amorphous thin film transistor(TFT) as switching devices. This panel has a 7.0 inches diagonally measured active display area with 480X RGB x 234 resolution.
AT070TN07 V.D is designed with analog interface and lower resolution so that it is cheaper than some other 7 inch LCD panels. Matching resistive touch screen is available.
Packaging Form:
Amount per Box:50pcs
Box Size: 530*355*255 mm(L*W*H)
Box Gross Weight: 10.759Kgs
Payment Terms: 100% in Advance
Shipping Methods:
