Product Description

1. General Description:

The Control Board supports:
1) One HDMI signal input. The IC supports HDMI1.2 and HDMI 1080P display.
2) 7V~22V DC operating voltage.
3) Standard 6pin backlight connector which can be connected to inverter.
4) Standard LVDS signal output, including single 6, single 8,dual 6, dual 8 and so on.
5) 3.3V,5V and 12V LCD panels with maximum resolution 1920x1440
6) Standard OSD keypad connector and two-color LED indicators
7) TTL signal output. PCB800181 adapter board is needed for AT065TN14,AT070TN92 and
other general 50pin TTL LCD modules to use this driver board.
8) Universal 40pin LVDS HD LCD modules such as EJ070NA01(1024X600),EJ080NA04B
(1024X768), ZJ070NA01. In this case, adapter board PCB800182 is needed.
9) Remote Control function done by software.
10)4 positioning holes with 3mm diameter

Notes:
1) The maximum resolution this board can support is 1920x1080. When the resolution is
larger than 1440x900, it may need a fin to be added for cooling the controller IC.
2) Usually we send boards with matching programs wrote in. But if customers want to
modify the programs, matching tool is available.
3) With our USB interface programming tool, you can add LOGO in the BIN codes.
4) If customers have specific requirements, we can provide customization service.

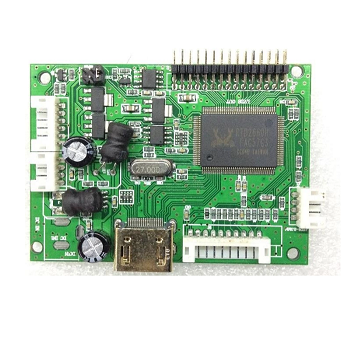

2. Pictures for reference



Packaging & Shipping

Packed with foam and cartons.
