LCD controller board HDMI+AV+USB, TP.V56.PB816 for TV mainly
Quick Details
- D/C: PCB with components.
- Package: PCB with components.
- Model Number: 816 V1.1
- Type: Drive IC
- Brand Name: Control
- Place of Origin: Guangdong, China (Mainland)
- Main CHIPSET: RDA8501-XBN
- Panel Type: TFT LCD
- Panel Interface: Single/Dual LVDS
- Panel Max Resolution: 1920x1080
- VIDEO INPUT: TV,PC-RGB,CVBS,HDMI
- AUDIO INPUT: PC Audio,CVBS,Component
- POWER to PANEL: 12V
- USB FUNCTION: software upgrade, multimedia play
- Button Types: Ground Key Interface
- Panel Size: 28-32 inch
Introduction
1) General Description:
TP.V56.PB816 is analog LCD TV main board, which is suitable for Asia-Pacific and Middle-East market.
It can support more than 26~32 inch LCD panels which resolution is up to 1920×1080.
USB2.0 support multimedia playback and Software upgrade.
The HDMI support 1.4,and the HDCP support1.1.

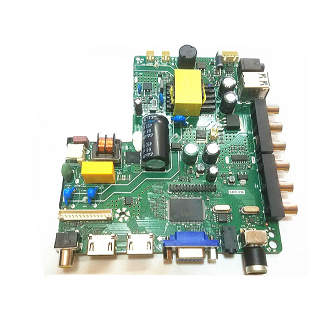

2) Real Pictures
Packed with foam and cartons.
Shipping ways:
1)Packing---Forwarder---HK Port---DHL---Tracking number
Or HK warehouse----Forwarder----DHL tracking number
Or Taiwan warehouse----Forwarder---DHL tracking number
2)Contact DHL/UPS/FedEx directly with customer's account
3)To be picked up
We supply A grade new original InnoLux and AUO LCD panels.
Matching touch screens and driver boards are also available.
We advise our customers:
1)Please contact us for detailed specifications and check them carefully before choosing a LCD module, touch screen or driver board.
2)Please do let us know if quantity and presentation quality are OK within 1 week after signing the goods.
3)Please share information as much as possible when you meet a problem in using our products. That will do us a great favor to find a solution.
4)We are responsible for our LCD parts but joint responsibility is not included.
