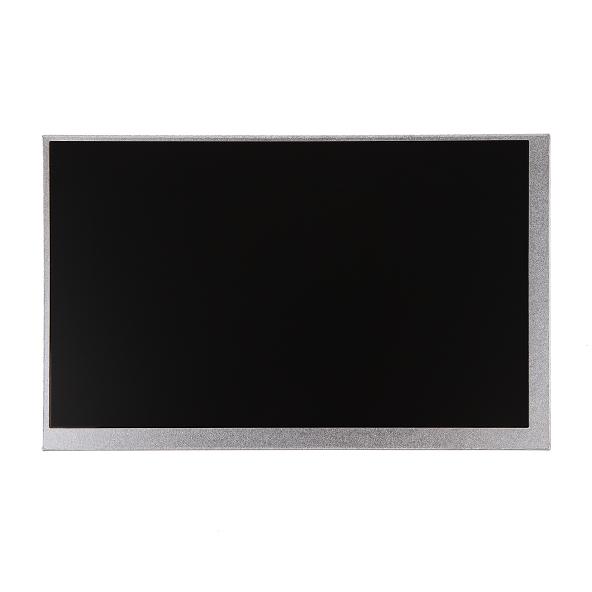

7'' 800x480 TFT LCD display with PCB AT070TN83 V.1
A grade new original,12months warranty
Brand Name: Innolux
T-CON board: with T-con board
Luminance(nits): 300
Interface: 40pin, 18bitRGB connector,digital,TTL
Operation Temperature( ℃): -20~70
Viewing direction: 50/70/70/70
Touch panel: Resistive touch screen optional
Control board: AV+VGA board optional
MOQ:1PC
Introduction
General Description:

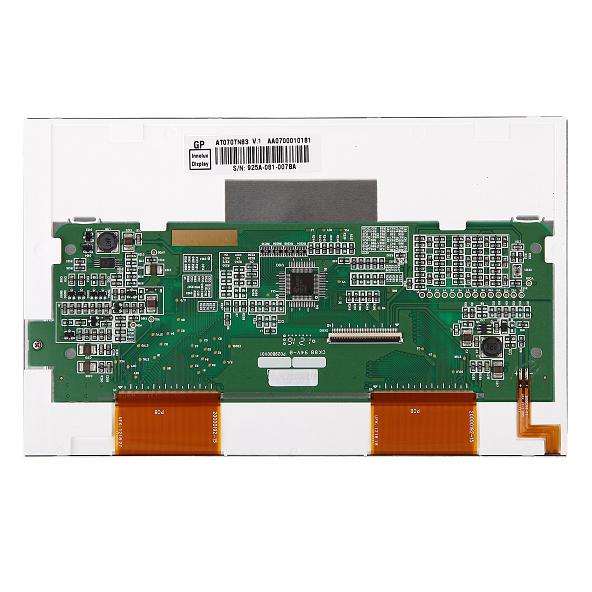

AT070TN83 V.1 is a 7'' 800x480 TFT LCD module with 40pin 18bit RGB connector. TCON board is its characteristic. Matching touch screen and AD board are available.
Packaging Form:
Amount per Box:50pcs
Box Size: 530*355*255 mm(L*W*H)
Box Gross Weight: 9.528Kgs
Payment Terms: 100% in Advance
Shipping Methods:
