2.36/2.4 inch 320x240 TFT LCD module,RGB/MCU/SPI interface
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Control
Model Number:
KDCT023C-1
Type:
TFT
Size:
2.36'' diagonal
Resolution:
320 X 3(RGB) X 240(QVGA)
Input Voltage:
3.3V
Display Colors:
65K/262K
Display Mode:
TN,normally white,transmissive
Interface:
8/9/16/18Bit MCU,3/4SPI+16/18Bit RGB
Operation Temperature:
-20~70℃
Outline Dimension:
52.35*46.35*2.6(mm)
Controller IC:
ILI9342C
RoHS:
RoHS compliant
Introduction
Product Description
1) General Description
This is a color active matrix TFT (Thin Film Transistor) LCD (liquid crystal display) that uses amorphous silicon TFT
as a switching device. This model is composed of a Transmissive type TFT-LCD Panel, driver circuit , back-
light unit. The resolution of a 2.36’TFT-LCD contains 320x240 pixels, and can display up to 262K colors.

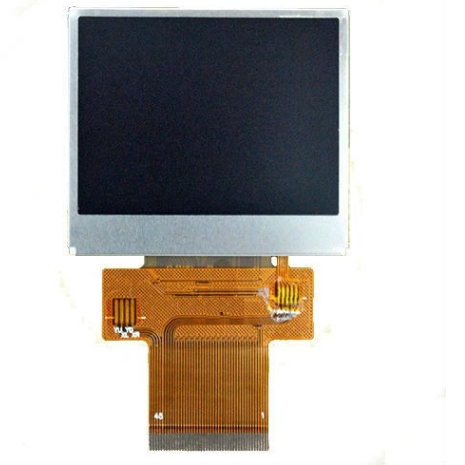

2) Photo
Packaging & Shipping
Shipping Label on the rear side of TFT-LCD display
Shipping process: Packing---Forwarder---HK Port---DHL---Tracking number
Or HK warehouse----Forwarder----DHL tracking number
Or Taiwan warehouse----Forwarder---DHL tracking number
