7'' 1024x600 TFT LCD panel, 40pin FPC type LVDS display
Quick Details
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: Control
- Model Number: KDCT070C-3
- Type: TFT
- Size: 7''
- Resolution: 1024*600
- Outline Dimension:165.75*105.39*2.45(mm)
- LCD Drive Voltage: 3.3V
- Quality grade: A grade
- Touch Panel: Resistive/Capacitive Touch Screen optional
- Driver Board: AV+VGA+HDMI inputs(optional)
- Luminance: 350 nits
- Display mode: transmissive
- Interface: 40pin FPC(LVDS)
Introduction
InnoLux 7'' 1024x600 TFT LCD panels ZJ070NA-01P and HJ070NA-13A are coming to end of life.
KDCT070C-3 is designed to replace the EOL display screens.
This is a LCD display with 40pin FPC type LVDS interface and composed of TFT LCD,controller IC and LED backlight unit.
We also supply matching touch screen and PCB control board.

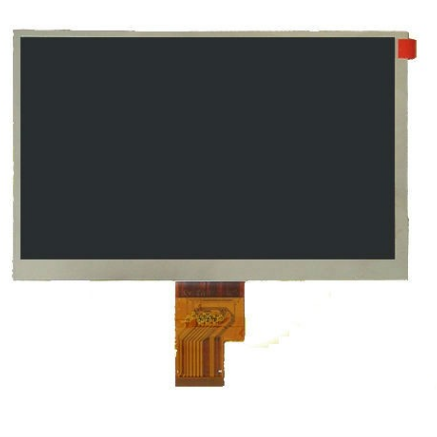

1) Photos
2) Matching Touch Screen
3) Matching PCB Control Board
Shipping Label on the rear side of TFT-LCD display
Shipping ways:
1)Packing---Forwarder---HK Port---DHL---Tracking number
Or HK warehouse----Forwarder----DHL tracking number
Or Taiwan warehouse----Forwarder---DHL tracking number
2)Contact DHL/UPS/FedEx directly with customer's account
3)To be picked up
