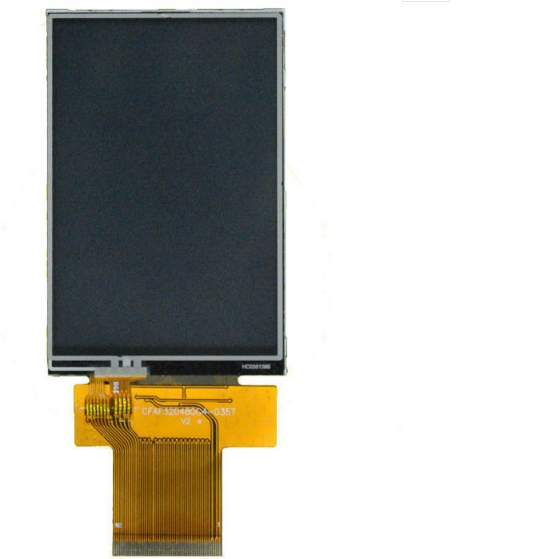

3.5'' 320x480 touch screen LCD display module
Quick Details
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: Control
- Model Number: KDCT035C-4TP
- Type: TFT
- Size: 3.5''
- Resolution: 320*RGB*480
- Outline Dimension: 55.5 x84.96 x3.6(mm)
- LCD Drive Voltage: 3.3V
- Quality grade: A grade
- Luminance: 250 nits
- Display mode: transmissive
- Interface: MCU/RGB/serial
- Controller IC: ILI9488
- Touch panel: 4-wire resistive
Introduction
This is a color active matrix TFT (Thin Film Transistor) LCD (liquid crystal display) that uses amorphous silico
n TFT as a switching device. This model is composed of a Transmissive type TFT-LCD Panel, driver circuit,
back-light unit. The resolution of a 3.5TFT-LCD contains 320x480 pixels, and can display up to 65K/262K
colors.
Features:
-Low Input Voltage: 3.3V(TYP)
-Display Colors of TFT LCD: 65K/262K colors
Interface: 8/9/16/18BIT 8080 MCU interface
3SPI/4SPI+16/18BIT RGB interface
3/4-wire serial interface
1) Photos
2) Packing Method
(1) Put module into tray cavity
(2) Tray stacking
(3) Put 1 cardboard under the tray stack and 1 cardboard above
(4) Fix the cardboard to the tray stack with adhesive tape:
(5) Put the tray stack into carton.
(6) Carton sealing with adhesive tape.
Shipping Label on the rear side of TFT-LCD display
Shipping ways:
1)Packing---Forwarder---HK Port---DHL---Tracking number
Or HK warehouse----Forwarder----DHL tracking number
Or Taiwan warehouse----Forwarder---DHL tracking number
2)Contact DHL/UPS/FedEx directly with customer's account
3)To be picked up
