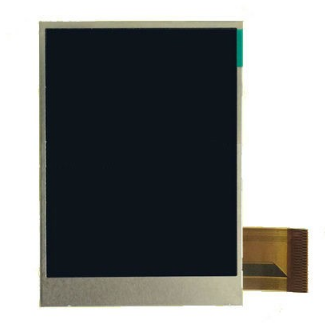

2.4'' 240x320 TFT LCD module,transflective display mod
Quick Details
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: Control
- Model Number: CT024QVRMA018
- Type: TFT
- Size: 2.4''
- Resolution: 240*RGB*320
- Outline Dimension:42.92*60.26*2.45 (mm)
- LCD Drive Voltage: 1.8V/3.3V
- Quality grade: A grade
- Driver IC: ILI9325C
- Luminance: 300 nits
- Display mode: Normally Black VA+Transflective
- Interface: SPI+RGB,MCU
- Touch screen: Without
Introduction
Product Description
This is a color active matrix TFT (Thin Film Transistor) LCD (liquid crystal display) that uses amorphous silicon TFT as a switching device. This model is composed of a Transmissive type TFT-LCD Panel, driver circuit,back-light unit. The resolution of a 2.4’TFT-LCD contains 240x320 pixels, and can display up to 65K/262K colors.
This LCD module is readable under sunlight. So it can be used for outdoor handheld devices.
Photos
Packaging & Shipping
Shipping Label on the rear side of TFT-LCD display
Shipping ways:
1)Packing---Forwarder---HK Port---DHL---Tracking number
2)Contact DHL/UPS/FedEx directly with customer's account
3)To be picked up
