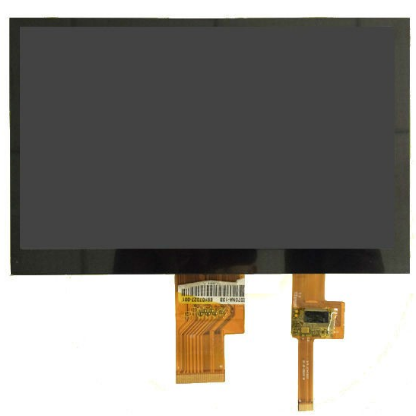

7'' 1024x600 TFT touch screen LCD glue together,LVDS+I2C interface/USB
Quick Details
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: Control
- Model Number: CTP070C-3LCD
- Type: TFT
- Size: 7''
- Resolution: 1024*RGB*600
- Outline Dimension:165.75*105.39*4.83 (mm)
- LCD Drive Voltage: 3.3V
- Quality grade: A grade
- CTP Driver IC: FT5826QSL
- Luminance: 300 nits
- Display mode:Transmissive/Normally white
- Interface: LVDS+I2C/USB
- Touch mode: 10 point and Gestures
Introduction
Product Description
This is a color active matrix TFT (Thin Film Transistor) LCD (liquid crystal display) that uses amorphous silicon TFT as a switching device. This model is composed of a Transmissive type TFT-LCD Panel, driver circuit,back-light unit. The resolution of a 7.0’TFT-LCD contains 1024x600 pixels, and can display up to 16.7M colors.
The whole unit touch screen LCD glue together is designed for embedded devices mainly because of the touch screen dimensions.
Packaging & Shipping
Shipping Label on the rear side of TFT-LCD display
Shipping ways:
1)Packing---Forwarder---HK Port---DHL---Tracking number
2)Contact DHL/UPS/FedEx directly with customer's account
3)To be picked up
