Products

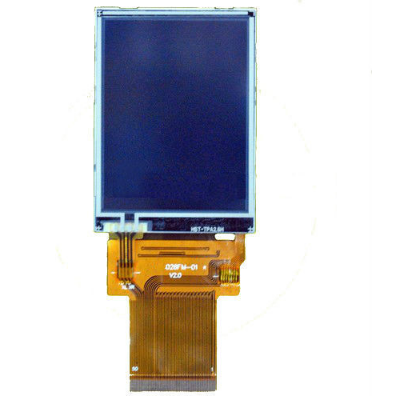

2.6 inch IPS LCD screen with touch,240x320 resolution,high brightness

Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Control
  • Model Number: CT026FM-1TP
  • Type: TFT
  • Size: 2.6''
  • Resolution: 240*RGB*320
  • Outline Dimension: 46.0*64.0*2.6 (mm)
  • LCD Drive Voltage: 3.3V
  • Quality grade: A grade
  • Driver IC: ILI9341V
  • Luminance: 350 nits
  • Display mode:Transmissive/Normally Black
  • Interface: SPI/RGB/MCU
  • Touch screen: 4-wire resistive touch
Contact now

Introduction

Product Description

* Description

This is a color active matrix TFT (Thin Film Transistor) LCD (liquid crystal display) that uses amorphous silicon TFT as a switching device. This model is composed of a Transmissive type TFT-LCD Panel, driver circuit,back-light unit. The resolution of a 2.6'' TFT-LCD contains 240x320 pixels, and can display up to 65K/262K colors.

* Features

-Low Input Voltage: 3.3V(TYP)

-Display Colors of TFT LCD:  65K/262K colors

Interface: 8/9/16/18Bit MCU Interface

16/18Bit RGB Interface

3-line/4-line Serial Interface



Photos



Packaging & Shipping

Shipping Label on the rear side of TFT-LCD display

Shipping ways:

1)Packing---Forwarder---HK Port---DHL---Tracking number

2)Contact DHL/UPS/FedEx directly with customer's account

3)To be picked up
