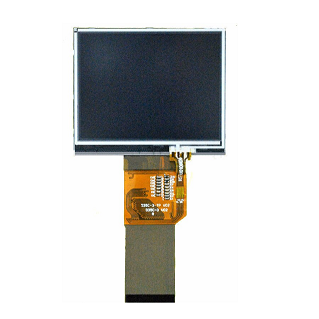

3.5'' TFT LCD 320x240 touch screen
Quick Details
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: Control
- Model Number: CT035C-3A-TP
- Type: TFT
- Size: 3.5''
- Resolution: 320*RGB*240
- Outline Dimension: 78.02*64.85*4.40 (mm)
- LCD Drive Voltage: 3.3V
- Quality grade: A grade
- Driver IC: SSD2119M
- Luminance: 250 nits
- Display mode: Transmissive/Normally White
- Interface: MCU/RGB/SPI
- Touch screen: Resistive Touch Panel
Introduction
Product Description
This is a color active matrix TFT (Thin Film Transistor) LCD (liquid crystal display) that uses amorphous silicon TFT as a switching device. This model is composed of a Transmissive type TFT-LCD Panel,driver circuit, back-light unit. The resolution of a 3.5'' TFT-LCD contains 320x240 pixels, and can display up to 65K/262K colors.
4-wire resistive touch screen comes with this TFT LCD display.
Photos
Packaging & Shipping
Shipping Label on the rear side of TFT-LCD display
Shipping ways:
1)Packing---Forwarder---HK Port---DHL---Tracking number
2)Contact DHL/UPS/FedEx directly with customer's account
3)To be picked up
