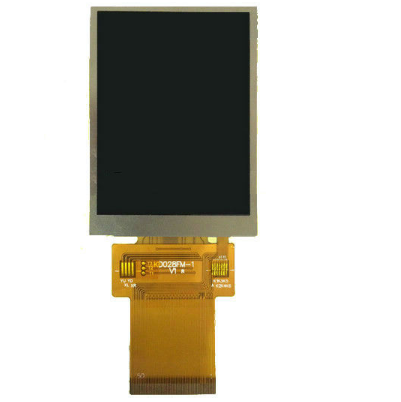

2.8'' TFT LCD screen, IPS display mode, MCU/RGB/Serial interface
Quick Details
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: Control
- Model Number: CT028FM-1
- Type: TFT
- Size: 2.8''
- Resolution: 240*RGB*320
- Outline Dimension:50.5*69.7*2.6 (mm)
- LCD Drive Voltage: 3.3V
- Quality grade: A grade
- Driver IC: ST7789V
- Luminance: 480 nits
- Display mode:Transmissive/Normally Black
- Interface: SPI/RGB/MCU
- Touch screen: optional
Introduction
This is a color active matrix TFT (Thin Film Transistor) LCD (liquid crystal display) that uses amorphous silicon TFT as a switching device. This model is composed of a Transmissive type TFT-LCD Panel, driver circuit , back-light unit. The resolution of a 2 . 8 ’ TFT-LCD contains 2 4 0 x 3 2 0 pixels, and can display up to 65K/262K colors.
* Features
-Low Input Voltage: 3.3V(TYP)
-Display Colors of TFT LCD: 65K/262K colors
-RGB Interface: 8/9/16/18BIT 8080 MCU interface;3/4-wire serial interface;16/18BIT RGB
Photos
Shipping Label on the rear side of TFT-LCD display
Shipping ways:
1)Packing---Forwarder---HK Port---DHL---Tracking number
2)Contact DHL/UPS/FedEx directly with customer's account
3)To be picked up
