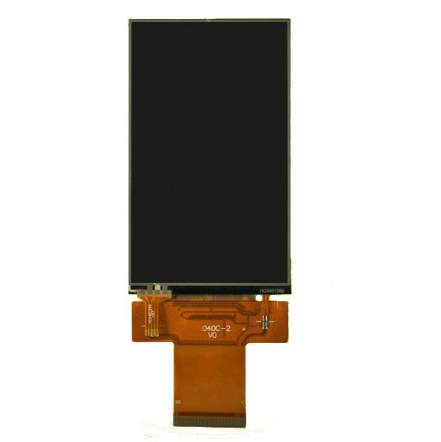

4.0'' 480x800 TFT LCD with touch screen, MCU/RGB interface,ILI9806

Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Control
  • Model Number: CT040C-2-TP
  • Type: TFT
  • Size: 4.0''
  • Resolution: 480*RGB*800
  • Outline Dimension:58.34*97.50*3.70 (mm)
  • Interface: MCU / 3SPI+RGB
  • Quality grade: A grade
  • Driver IC: ILI9806
  • Luminance: 300 nits
  • Display mode:Transmissive/Normally White
  • Active Area: 51.84*86.40 (mm)
  • Touch screen: 4W resistive
Contact now

Introduction

Product Description

This is a color active matrix TFT (Thin Film Transistor) LCD (liquid crystal display) that uses amorphous silicon TFT as a switching device. This model is composed of a Transmissive type TFT-LCD Panel, driver circuit , back-light unit. The resolution of a 4.0TFT-LCD contains 480x800 pixels, and can display up to 65K/262K/16.7M colors.


* Features
-Low Input Voltage: 3.3V(TYP)
-Display Colors of TFT LCD: 65K/262K/16.7M colors
-Interface: 8BIT/9BIT/16BIT/18BIT/24BIT MCU, 3SPI/4SPI+16BIT/18BIT/24BIT RGB

-4 wire resistive touch screen is integrated.



Photos



Packaging & Shipping

Shipping Label on the rear side of TFT-LCD display

Shipping ways:

1)Packing---Forwarder---HK Port---DHL---Tracking number

2)Contact DHL/UPS/FedEx directly with customer's account

3)To be picked up
