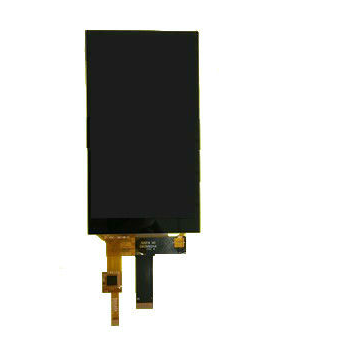

5'' 480x854 MIPI DSI interface LCD display with capacitive touch screen

Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Control
  • Model Number: CT050FWFIA019-CTP
  • Type: TFT
  • Size: 5''
  • Resolution: 480*RGB*854
  • Outline Dimension: 67.56*122.35*4.05 (mm)
  • Interface: 2 Lane MIPI + I2C
  • Quality grade: A grade
  • Driver IC: ILI9806E
  • Luminance: 460 nits
  • Display mode: Transmissive/Normally Black
  • Active Area: 61.63*109.65 (mm)
  • Touch screen: PCAP
Contact now

Introduction

Product Description

This is a color active matrix TFT (Thin Film Transistor) LCD (liquid crystal display) that uses amorphous silicon TFT as a switching device. This model is composed of a Transmissive type TFT-LCD Panel, driver circuit,back-light unit. The resolution of a 5.0’TFT-LCD contains 480x854 pixels, and can display up to 65K/262K/16.7M colors.


* Features
-Low Input Voltage: 3.3V(TYP)
-Display Colors of TFT LCD: 65K/262K/16.7M colors
-Interface: 2 Lane MIPI

-CTP Interface:  I2C



Photos



Packaging & Shipping

Shipping Label on the rear side of TFT-LCD display

Shipping ways:

1)Packing---Forwarder---HK Port---DHL---Tracking number

2)Contact DHL/UPS/FedEx directly with customer's account

3)To be picked up
