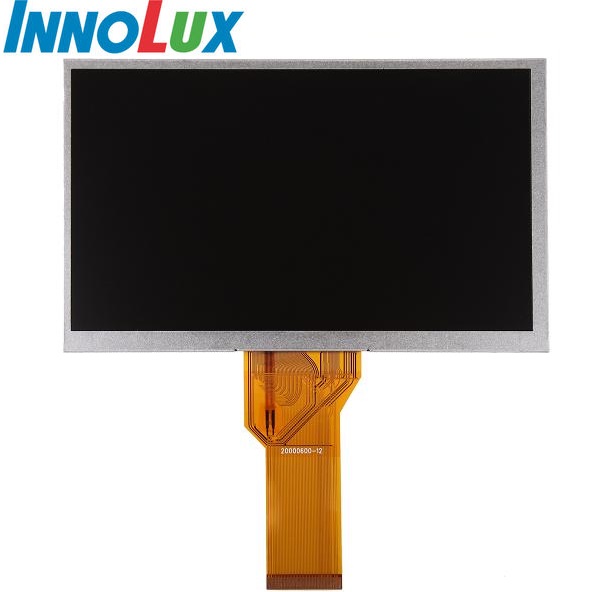

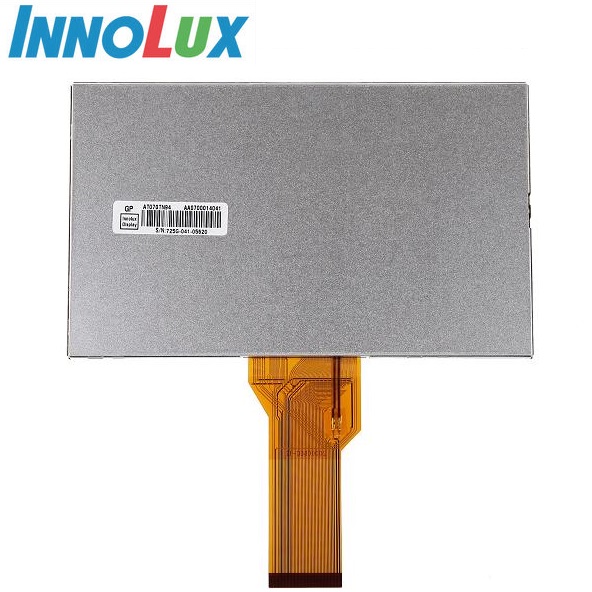

7'' 800x480 TFT LCD panel AT070TN94 for display
A grade new original,12months warranty
Brand Name: InnoLux
Luminance(nits): 400
Contrast(%): 500
Display Mode: TN,normally white,transmissive
Viewing Angle: 50/70/70/70
Interface: 50pin FPC,parallel 24bit RGB,TTL
Operation Temperature: -30~85℃
Outline Dimension: 164.9*100.0*5.7(mm)
Touch Screen: Resistive/Capacitive Touch Screen
Driver board: HDMI+AV++DVI+VGA interface(optional)
MOQ:1PC
Introduction
General Description:
AT070TN94 is a transmissive type color active matrix liquid crystal display (LCD), which uses amorphous thin film transistor(TFT) as switching devices. This panel has a 7.0 inches diagonally measured active display area with WVGA (800X RGB x 480) resolution.
AT070TN94 has 400nits high luminance so that its display effect is good.
Payment Terms: 100% in Advance
Shipping Methods:
AT070TN94 is a transmissive type color active matrix liquid crystal display (LCD), which uses amorphous thin film transistor(TFT) as switching devices. This panel has a 7.0 inches diagonally measured active display area with WVGA (800X RGB x 480) resolution.
AT070TN94 has 400nits high luminance so that its display effect is good.
Matching resistive/capacitive touch screen and HDMI control board is available.
Packaging Form:
Amount per Box:50pcs
Box Size: 530*355*255 mm(L*W*H)
Box Gross Weight: 11.0Kgs
