IIC I2C to USB interface controller board for PCAP touch screen
Quick Details
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: Control
- Model Number: CTPDRV-M2
- Type: tablet/laptop touch screen
- USB Compatibility: USB 2.0 FULL compatibility
- Input Voltage: 5V
- Working Voltage: 3.3V
- Working Current: 50mA
- PCB color: Blue
- Main controller: Freescale Chipset
- Touch Screen Controller Supported:GT928/GT911/GT9110 series
- Matching Operating System: Windows, Android, Linux
- Outline Dimension: 60*23*5(mm)
- Developing Standard: HID digitizer
Introduction

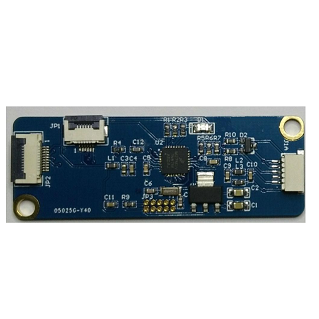

IC I2C to USB interface controller board for PCAP touch screen
Description:
This is a touch screen digitizer which can connect FPC type I2C capacitive touch screen with USB interface. It is also called I2C/IIC to USB interface board or touch screen USB controller board.
This digitizer supports all 6pin and 10pin FPC interface capacitive touch screens designed with Goodix controller ICs.
- From single touch to 10 touch points. You can set it or it will fit automatically according to operating system.
- Multi-touch HID digitizer standard. Plug for directly use without installing any drivers.
- It is controller board as well as function board.
Connectors Description:
| Pin Arrange | JP1 | JP2 | JP3 | J1A |
| 1 | RST | RST | -- | VCC |
| 2 | VCC | VCC | -- | D- |
| 3 | GND | GND | -- | D+ |
| 4 | INT | INT | -- | GND |
| 5 | SDA | SDA | -- | GND |
| 6 | SCL | SCL | -- | |
| 7 | 7~10 NC | -- |
JP1: 0.5mm FPC bottom
JP2: 0.5mm FPC bottom
J1A: 1.0mm W-T-B Housing
Part of Touch Screen Sizes:
