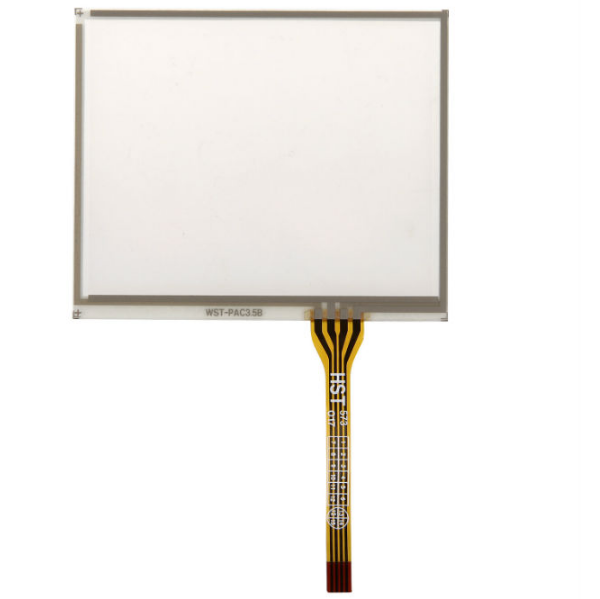

3.5'' Touch Screen for InnoLux LCD LQ035NC111

Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Control
  • Model Number: PAC3.5B
  • Type: Touch screen for TFT LCD panel
  • Outline Dimension: 76.7*63.65(mm)
  • View Area: 71.7*55.65(mm)
  • Active Area: 69.7*53.65(mm)
  • Operating Voltage: 5.0V
  • Operation Temperature: -10℃~60℃
  • Storage Temperature: -20℃~70℃
  • Life Time: >1,000,000 times
  • Circuit Grade: DC5V,1mA
  • Total thickness: 1.4±0.15mm
  • Operating pressure: 10g~100g
Contact now

Introduction

1.Touch panel drawing

2. Pictures

3. More Touch Screen Sizes
