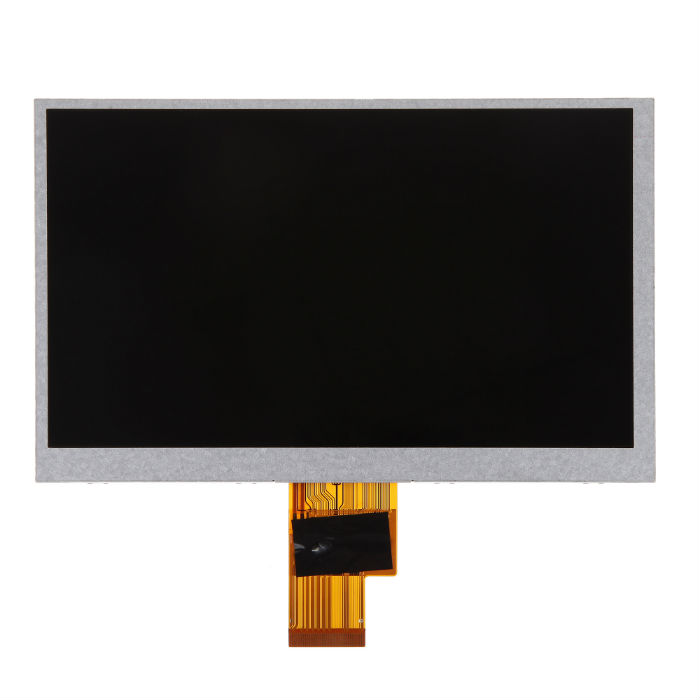

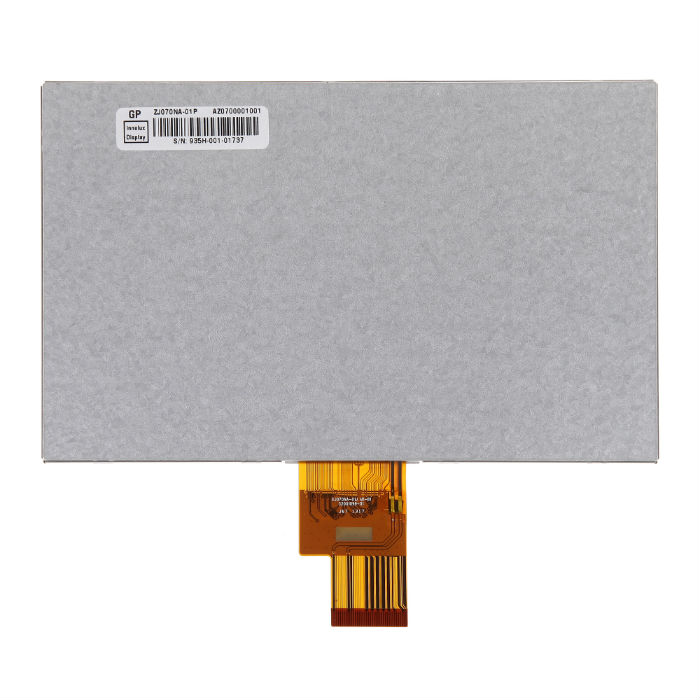

7'' 1024x600 TFT LVDS LCD display screen ZJ070NA-01P
A grade new original,12months warranty
Brand Name: InnoLux
Outline Dimension: 165.75*105.39*4.8(mm)
LCD Drive Voltage: 3.3V
Touch Panel: Resistive/Capacitive Touch Screen optional
PCB Control Board: AV+VGA+HDMI+DVI inputs
Luminance: 500 nits
Display mode:TN,normally white, transmissive
Interface: 40pin FPC(LVDS)
Operation Temperation:-30~80
MOQ:1PC
Introduction
Product Description:
ZJ070NA-01P is a 7inch 1024x600 TFT LCD module originally from InnoLux. Quality grade is A.
Packaging Form:
Payment Terms: 100% in Advance
Shipping Methods:
ZJ070NA-01P is a 7inch 1024x600 TFT LCD module originally from InnoLux. Quality grade is A.
We supply this LCD module with matching touch screen and PCB control board optional.The LCD panel is not equal to LCD monitor,HMI display or other touch display all-in-one devices.But it is the most important part.
Packaging Form:
Amount per Box:50pcs
Box Size: 530*355*255 mm(L*W*H)
Box Gross Weight: 11.2Kgs
Payment Terms: 100% in Advance
Shipping Methods:
