9'' 4 wire resistive touch screen panel

Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Control
  • Model Number: TP4090A1
  • Type: Touch screen for TFT LCD panel
  • Outline Dimension: 210.3*126(mm)
  • View Area: 201.4*115(mm)
  • Active Area: 198.4*112.1(mm)
  • Operating Voltage: 5.0V
  • Operation Temperature: -20℃~70℃
  • Storage Temperature: -30℃~80℃
  • Life Time: >1,000,000 times
  • Surface Hardness: ≥3H(pencil)
  • Circuit Grade: DC5V,1.0mA
  • Operating Pressure: 30g~100g
Contact now

Introduction

1.Touch panel drawing

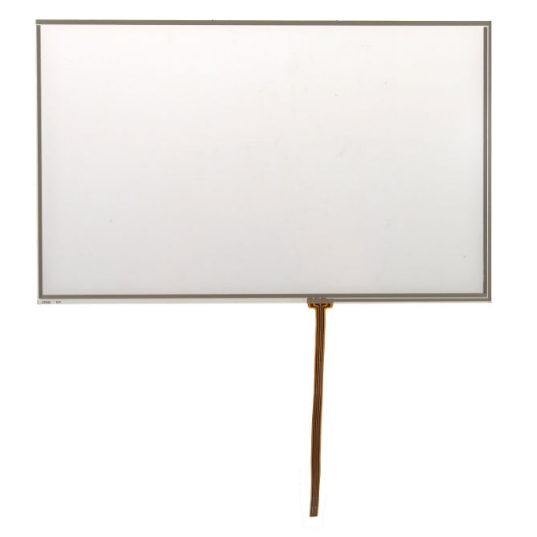

2. Pictures

3. More Touch Screen Sizes
