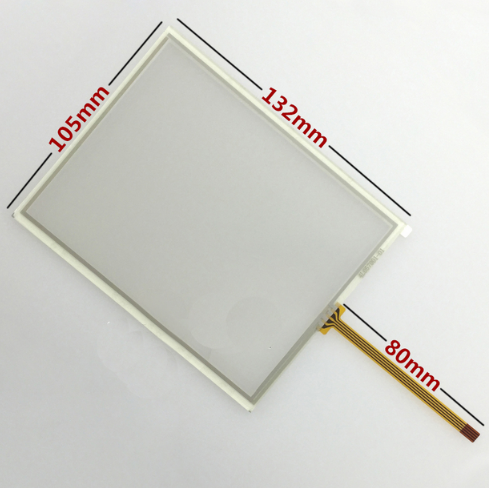

5.7" 4-wire resistive touch screen,132 x 105
Quick Details
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: Control
- Model Number: TP05701
- Type: Touch screen for TFT LCD panel
- Outline Dimension: 132 x 105 (mm)
- View Area: 116 x 88 (mm)
- Active Area: 115 x 87 (mm)
- Operating Voltage: ≤10V
- Operation Temperature:-10℃~60℃
- Storage Temperature: -20℃~70℃
- Life Time: >1,000,000 times
- Surface Hardness: ≥3H(pencil)
- Response time: ≤10ms
- Operating pressure: 20g~80g
Introduction
5.7" 4-wire resistive touch screen,132 x 105
1.Packaging:
2. Shipping ways:
1)Packing---Forwarder---HK Port---DHL---Tracking number
Or HK warehouse----Forwarder----DHL tracking number
Or Taiwan warehouse----Forwarder---DHL tracking number
2)Contact DHL/UPS/FedEx directly with customer's account
3)To be picked up
We supply A grade new original InnoLux and AUO LCD panels.
Matching touch screens and driver boards are also available.
We advise our customers:
1)Please contact us for detailed specifications and check them carefully before choosing a LCD module, touch screen or driver board.
2)Please do let us know if quantity and presentation quality are OK within 1 week after signing the goods.
3)Please share information as much as possible when you meet a problem in using our products. That will do us a great favor to find a solution.
4)We are responsible for our LCD parts but joint responsibility is not included.
