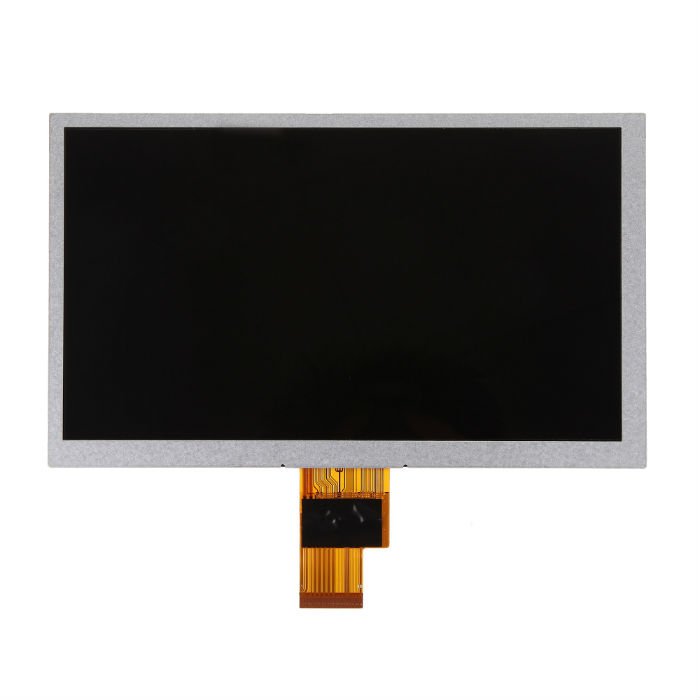

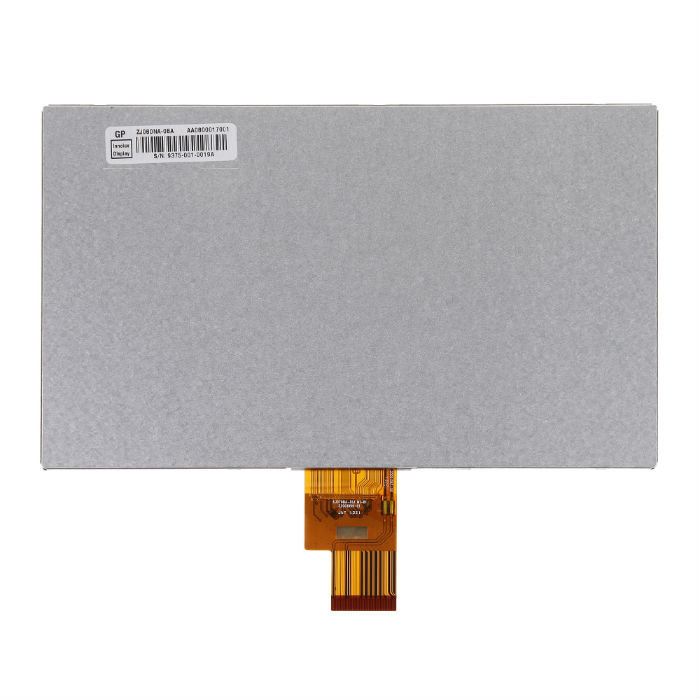

8'' 1024x600 LVDS TFT LCD screen ZJ080NA-08A
A grade new original,12months warranty
Brand Name: InnoLux
Luminance(nits): 500
Contrast(%): 700
Display Mode: TN,normally white,transmissive
Viewing Angle: 70/75/75/75
Interface: 40pin FPC(LVDS)
Operation Temperature: -20~80℃
Outline Dimension: 192.8*116.9*6.4(mm)
Touch Screen: 4-wire resistive touch screen
MOQ:1PC
Introduction
General Description:
ZJ080NA-08A is a transmissive type color active matrix liquid crystal display (LCD), which uses amorphous thin film transistor(TFT) as switching devices. This panel has a 8.0 inches diagonally measured active display area with WSVGA (1024 RGB x 600) resolution.
ZJ080NA-08A is designed with high luminance 500nits so that it has good display effect.
Packaging Form:
Payment Terms: 100% in Advance
Shipping Methods:
ZJ080NA-08A is a transmissive type color active matrix liquid crystal display (LCD), which uses amorphous thin film transistor(TFT) as switching devices. This panel has a 8.0 inches diagonally measured active display area with WSVGA (1024 RGB x 600) resolution.
ZJ080NA-08A is designed with high luminance 500nits so that it has good display effect.
Matching resistive touch screen and HDMI control board is available.
Packaging Form:
Amount per Box:30pcs
Box Size: 530*355*255 mm(L*W*H)
Box Gross Weight: 9.86Kgs
Payment Terms: 100% in Advance
Shipping Methods:
