7'' capacitive touch screen with GT911 controller IC and I2C interface

Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Control
  • Model Number: CTP070452
  • Type: Touch screen for TFT LCD panel
  • Cover Lens: 164.90*100.00(mm)
  • LENS View Area: 155.08*86.92(mm)
  • IC: GT911
  • Connect material: FPC
  • Operation Temperature: -20℃~70℃
  • Storage Temperature: -30℃~80℃
  • RoHS compliance: RoHS
  • Interface: I2C(IIC)
  • Transmittance: ≥80%
  • Connector: 8pin 0.5mm pitch
Contact now

Introduction

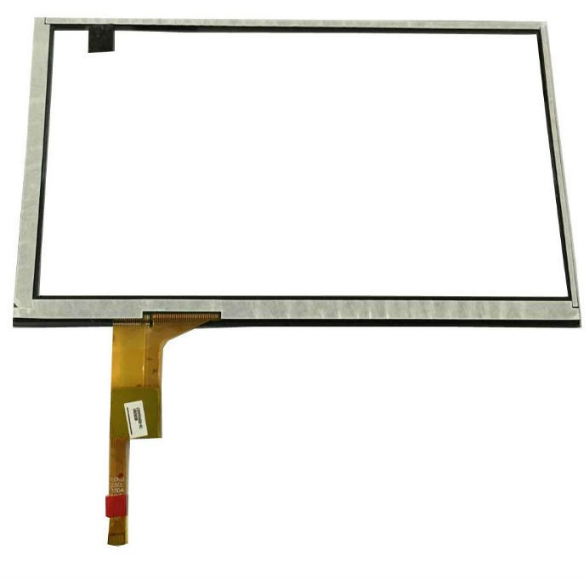

7'' capacitive touch screen with GT911 controller IC and I2C interface

This touch screen is designed for InnoLux 7'' 800x480 RGB LCD module AT070TN92,AT070TN94,P070BAG-CM1 and some other display screens with similar dimensions.



1.Touch panel drawing

2. Pictures

3. More Touch Screen Sizes
